Multi Colors Corrugated Box Printing Machine 150pcs Min Working Speed

Multi Colors Corrugated Box Printing Machine 150pcs Min Working Speed

According to statistics, China uses 10 billion corrugated boxes every year for online shopping. For online shoppers, after receiving the goods, they only care about the "treasures" in the box, and the mission of the box is completed. It is thrown away or placed in a corner forever, but this does not affect the important position of corrugated boxes in the transportation industry. Our Corrugated box printing machine is a machine that uses fixed-shaped corrugated cardboard as raw material to produce formed cardboard. After printing, slotting and die-cutting, an unprocessed cardboard is produced into a formed and printed cardboard. At this time, the product is just a prototype and still needs subsequent processes such as gluing/nailing boxes to become a usable cardboard.

Printing Slotting Die Cutting Machine Parameters

Corrugated box printing machine is a machine composed of different units, and each of its units has different specifications, so customers can choose the machine that suits them according to their production needs.

Taking the slotting unit as an example, the slotting unit can be divided into three types according to its different slotting blade adjustment methods: the first is manual slotting blade adjustment. Whether it is the spacing between the slotting blades or the slotting depth of the slotting blades, they must be adjusted manually when they need to be adjusted. Although this slotting blade adjustment method can reduce the cost of the machine to the lowest, but the adjustment time will reach dozens of minutes, and the adjustment accuracy also depends entirely on the proficiency of the adjuster. Therefore, unless there are some special circumstances, we generally do not recommend this configuration.

The second is electric button blade adjustment. The slotting blade spacing and slotting depth can be adjusted by electric buttons. This configuration takes into account both machine cost and adjustment efficiency. It is the most cost-effective choice among the many configurations of the corrugated box printing machine, and it is also the configuration we strongly recommend to customers. This configuration cost is slightly higher than manual adjustment, but it reduces the adjustment time visibly. A skilled worker can reduce the adjustment time to about 15 minutes, which undoubtedly greatly improves production efficiency and saves time costs.

Finally, there is the PLC fully automatic one-click order exchange adjustment. This adjustment method relies on the PLC control panel for adjustment: before adjustment, you only need to input the slot spacing and slot depth you want into the machine through the PLC panel, and the machine can automatically adjust itself. This method compresses the adjustment time to an incredible level. It only takes 5 minutes for the machine to complete the adjustment, and the adjustment accuracy is undoubtedly much higher than the previous two methods.

Are you interested in our corrugated box printing machine? Send us an inquiry!

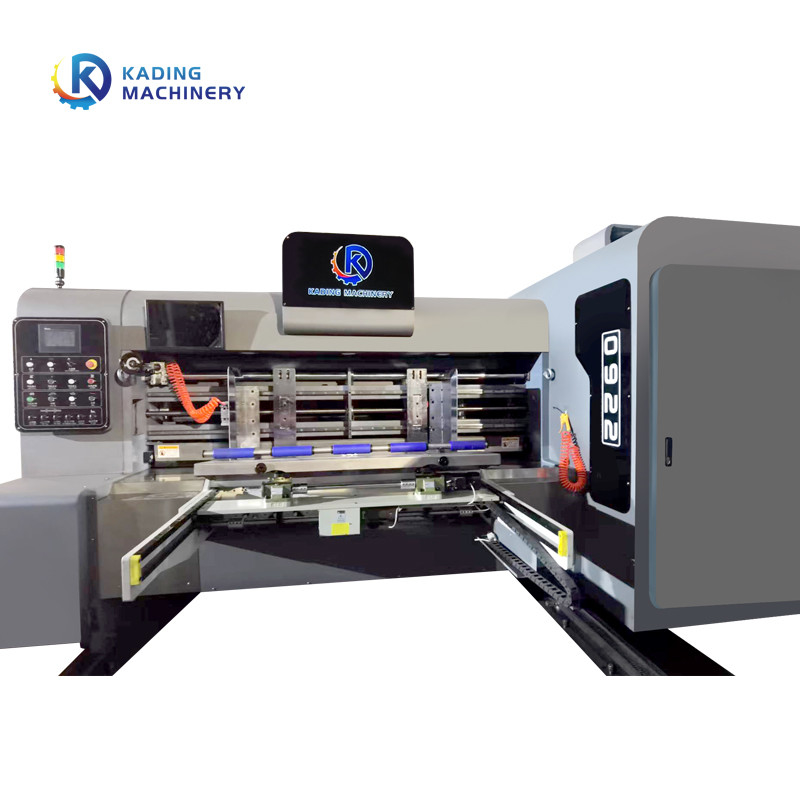

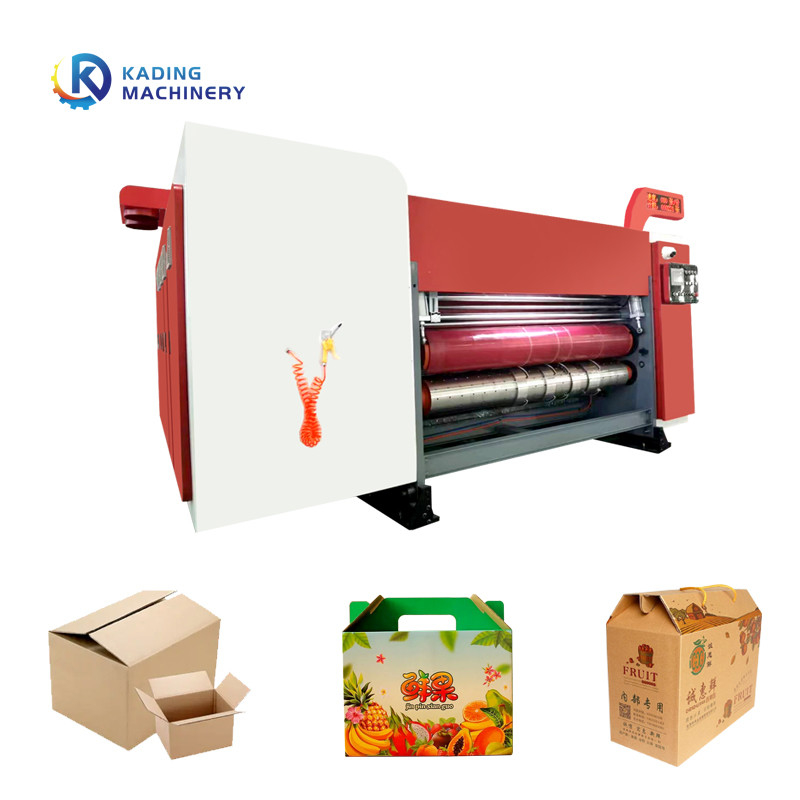

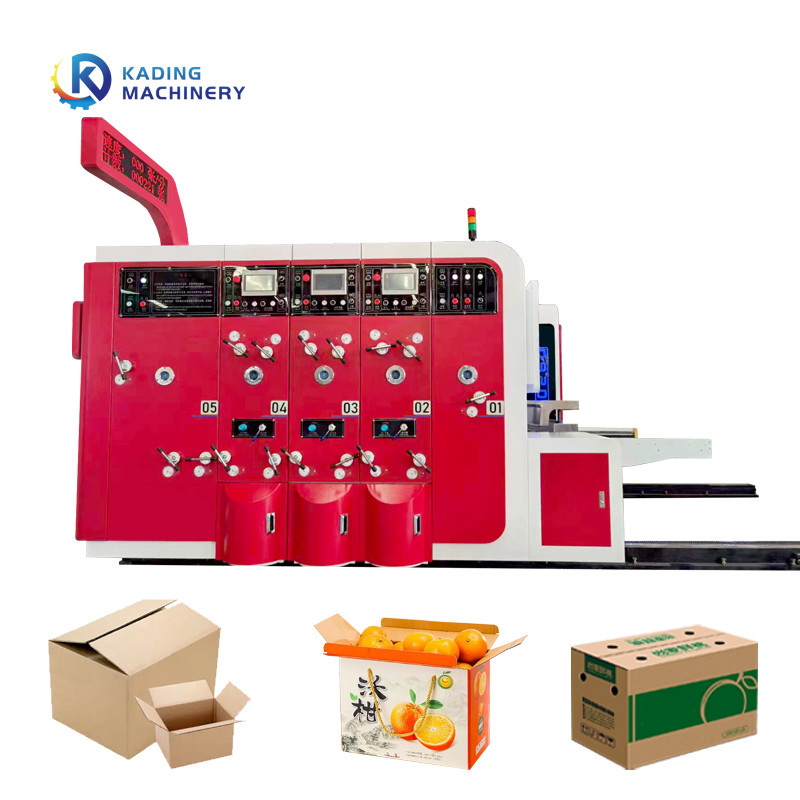

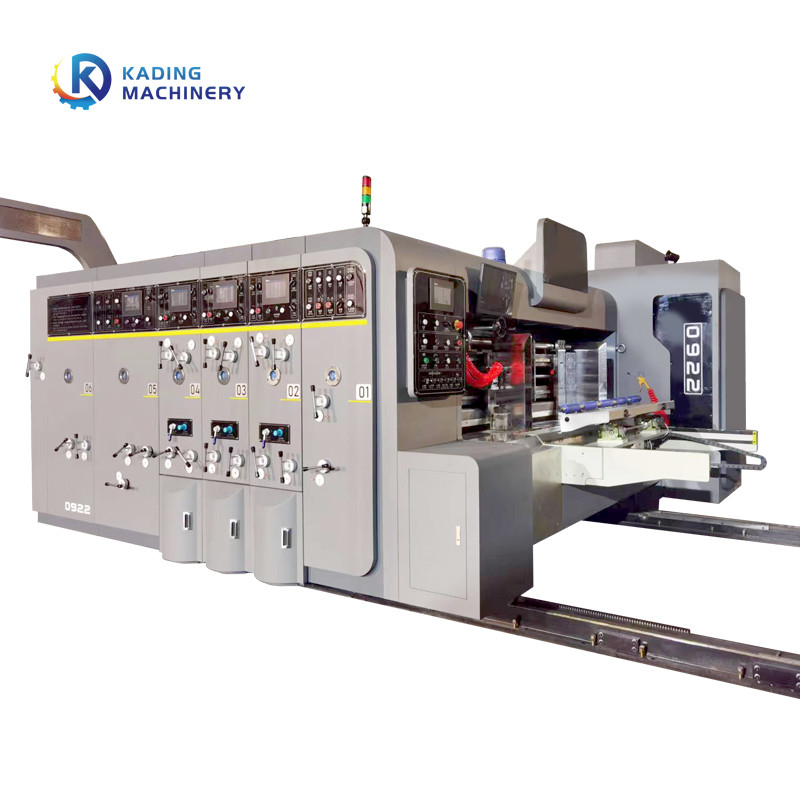

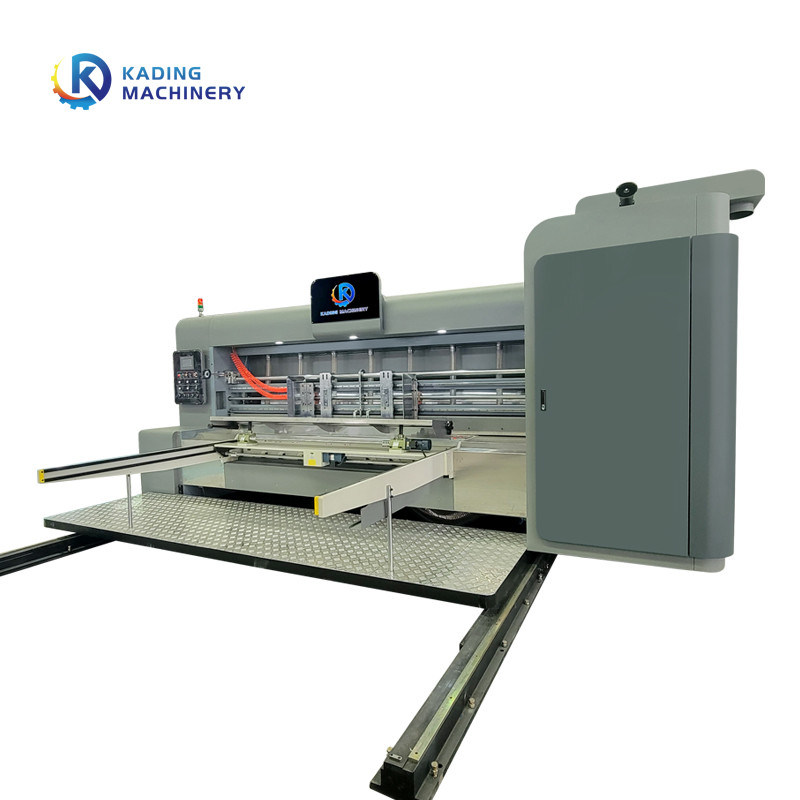

Corrugated Box Printing Machine Picture

Q: Are you a factory or a trading company?
A: We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
