Water Ink Cardboard Box Printer Machine With Slotter Die Cutter For Corrugating Carton Boxes

Water Ink Cardboard Box Printer Machine With Slotter Die Cutter For Corrugating Carton Boxes

The principle of our water ink cardboard box printer machine is of course to use the water brush method. Ink printing is a special printing technology that can show subtle color changes on the carrier. The ink used by the water-based ink printer needs to be diluted and dissolved to ensure the smoothness of color printing. Since the light color printing of diluted water-based ink is more expressive than the light color of ordinary spot colors, designers often use diluted water-based ink for water-based ink printing to form a light background color on the paper for subsequent printing.

Printing Slotting Die Cutting Machine Parameters

After everything is ready, stick the dried resin plate on the printing roller, and then use industrial ethanol to adjust the viscosity of the water-based ink in a 1:1 ratio. Then start the ink pump to ink, turn the ink roller until the ink amount is uniform, check the ink amount, the ink is evenly distributed on the ink roller, and the reticulated pattern is vaguely visible. At this time, start the test print. If the text is not clear and the bottom is exposed, the printing pressure can be adjusted appropriately. It should not be too large to avoid deformation of the printing plate; if the text is blurred and the lines are not clear, the amount of ink can be reduced until the text is clear, the lines are clear, and the dots are not deformed.

The cardboard box printer machine uses a rubber roller to transfer the ink in the ink tank to the printing plate on the printing plate cylinder, so as to print the required text and other information on the surface of the carton. The rubber roller is usually matched with a metal anilox roller. If you need higher printing accuracy, such as printing a recognizable QR code, we recommend that you use a ceramic anilox roller + scraper with a clearer printing effect. Of course, the two are different and the prices are different.

In recent years, the water-based ink industry has developed particularly rapidly. On the one hand, due to the gradual improvement of environmental protection regulations, printing plants have been promoted to transform to water-based inks. On the other hand, everyone has seen the advantages of water-based inks, and the disadvantages of solvent-based inks are becoming increasingly obvious. As of now, the use of water-based inks for printing on cartons has long been technically advanced, but has not been used on a large scale. The most important consideration is cost. Now that the technology is mature, it is inevitable that the cost of water ink cardboard box printer machines will drop. Let's take a look at why carton printing plants have switched to water-based inks for printing.

1. Safety and environmental protection. Needless to say, this can be said to be the biggest advantage of water-based ink over solvent-based ink. It does not contain volatile organic compounds, which reduces VOC emissions in the atmosphere. At the same time, it is also a great improvement for the health of ink producers and printing operators. The absence of organic residues can also guarantee the health of users of printed products, so users are also very concerned, such as the most direct presence of irritating odors. In terms of safety, it is also reflected in the stability of water-based ink, which is not easy to burn, so it is also safer.

2. Easy to clean. This is mainly for carton printing factories. If solvent-based ink is used, cleaning agents are needed to clean the machine and the site, which will undoubtedly increase some time and cost. The water-based ink of the cardboard box printer machine is different. It can be cleaned with common soapy water and other weakly alkaline water, and the cleaning is fast, which also improves production efficiency.

3. Cost saving. Some people may raise objections to this point, but the current water-based ink can indeed reduce costs. First of all, water-based ink can be printed quickly, which allows our cardboard box printer machine to reach a production speed of 200-300 pieces per minute. Fast printing speed means improved production efficiency. The second is the coating rate. Water-based ink is 10% higher than solvent-based ink. In addition, due to the good adaptability, stable performance, no corrosion to the substrate, simple operation, strong water resistance, and easy storage of water-based ink, these can reduce the cost of printing.

Are you interested in our cardboard box printer machine? Send us an inquiry now!

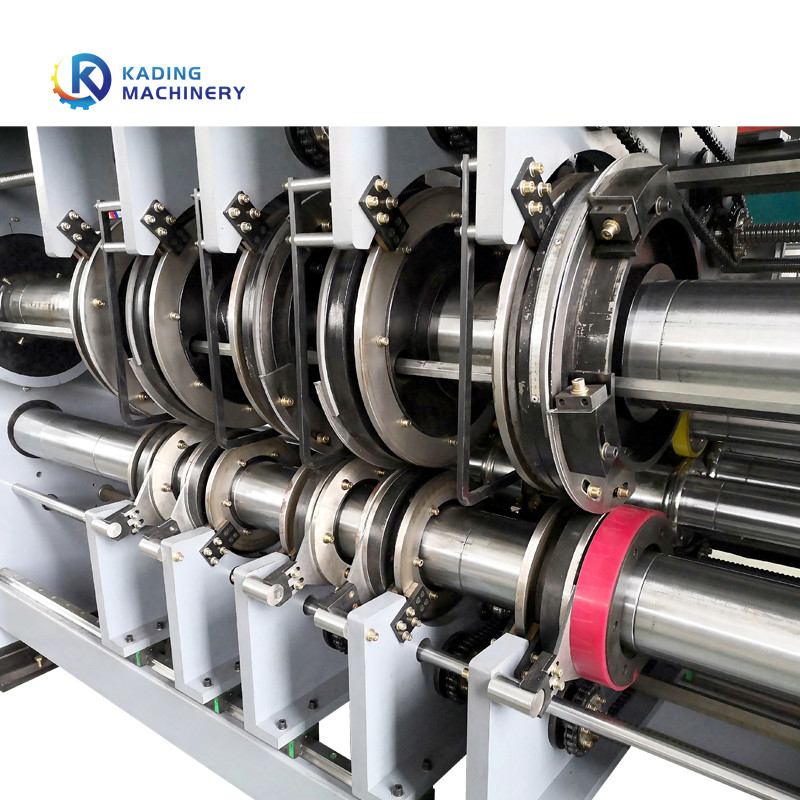

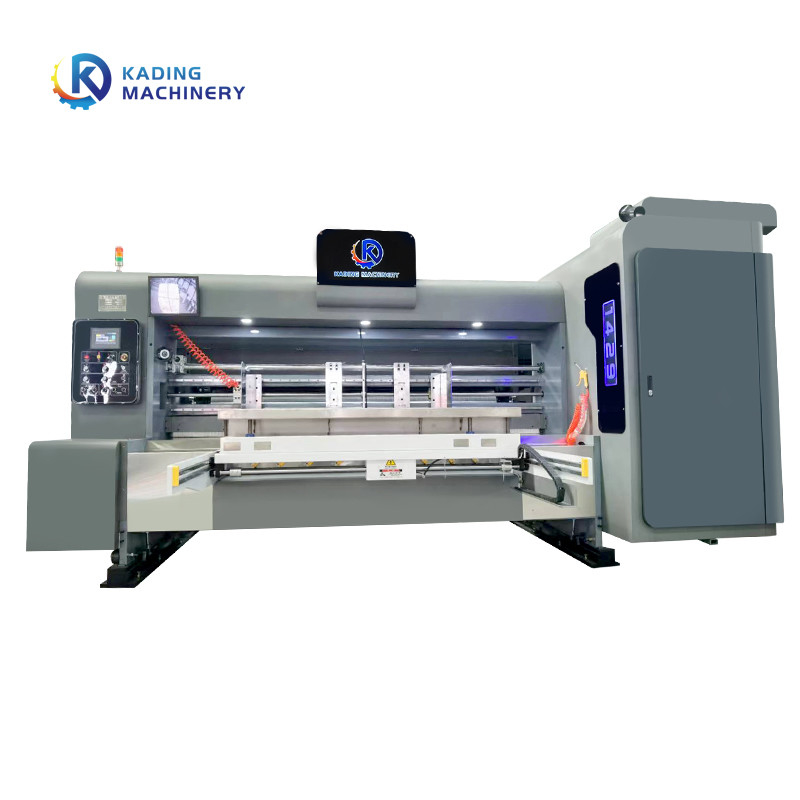

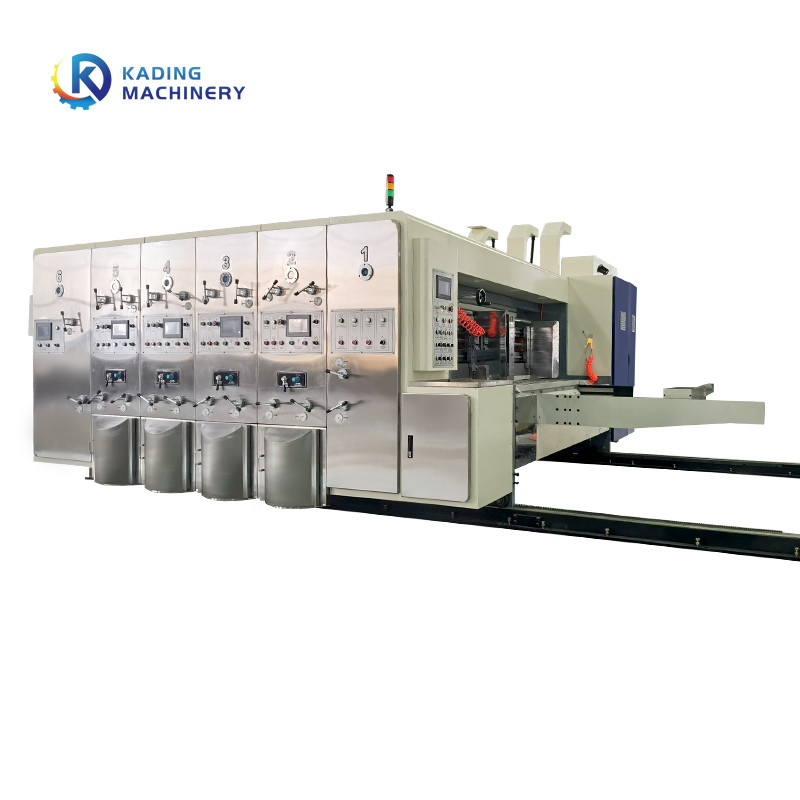

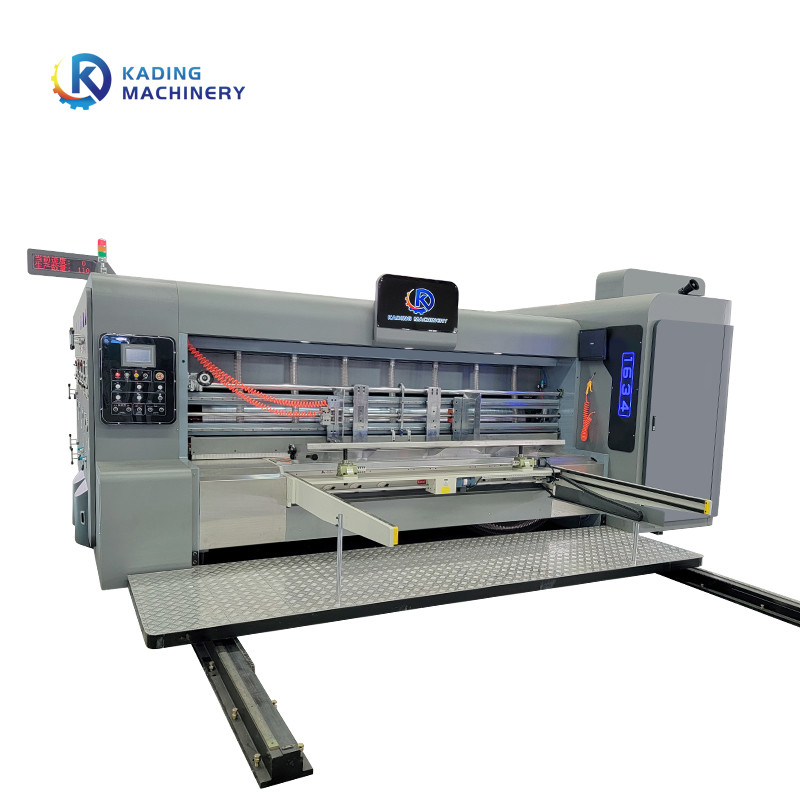

Corrugated Box Printing Machine Picture

Q: Are you a factory or a trading company?
A: We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
