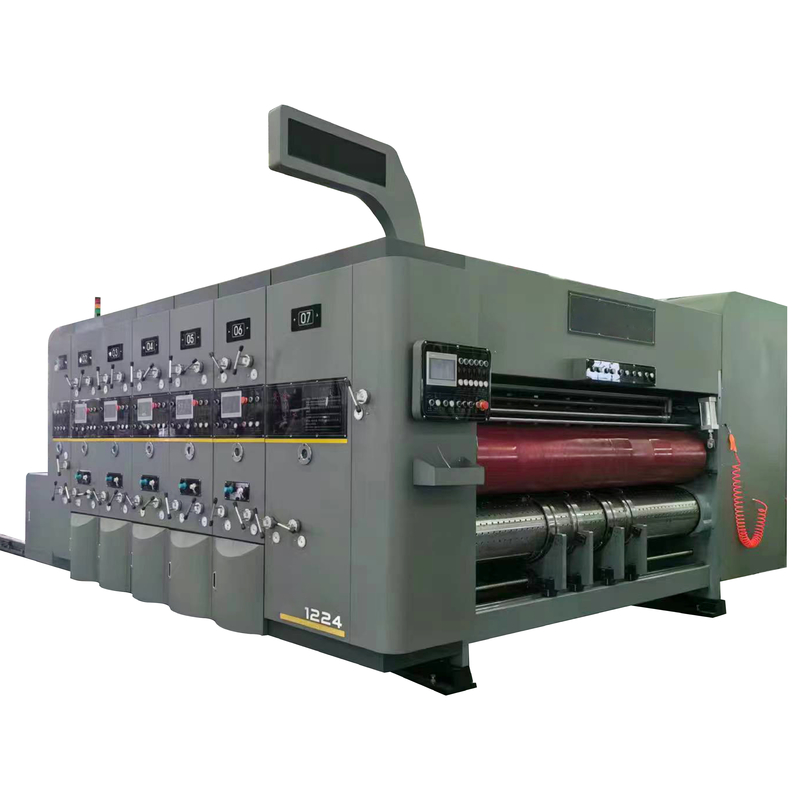

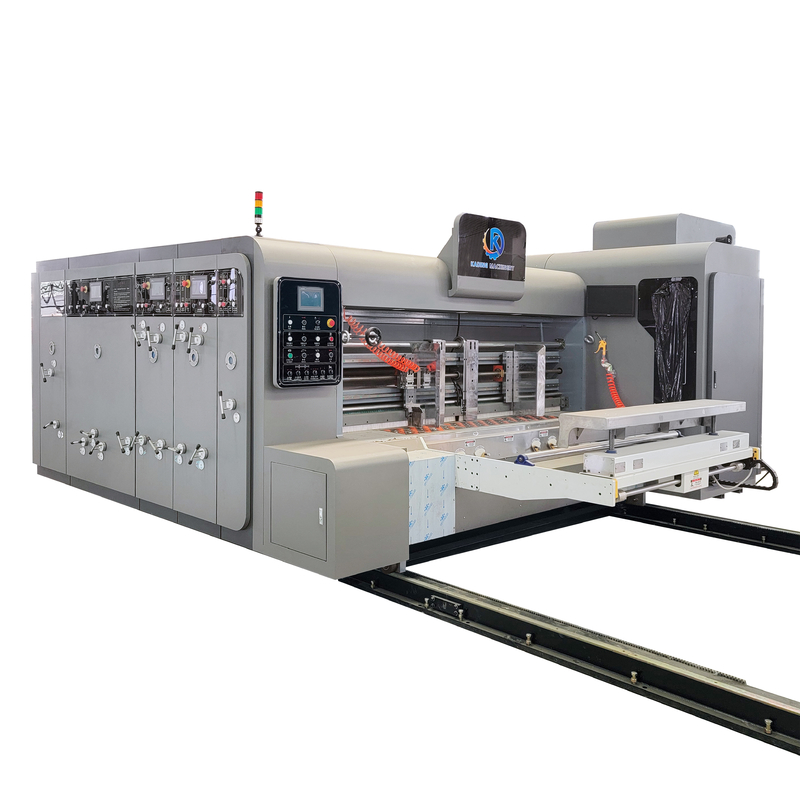

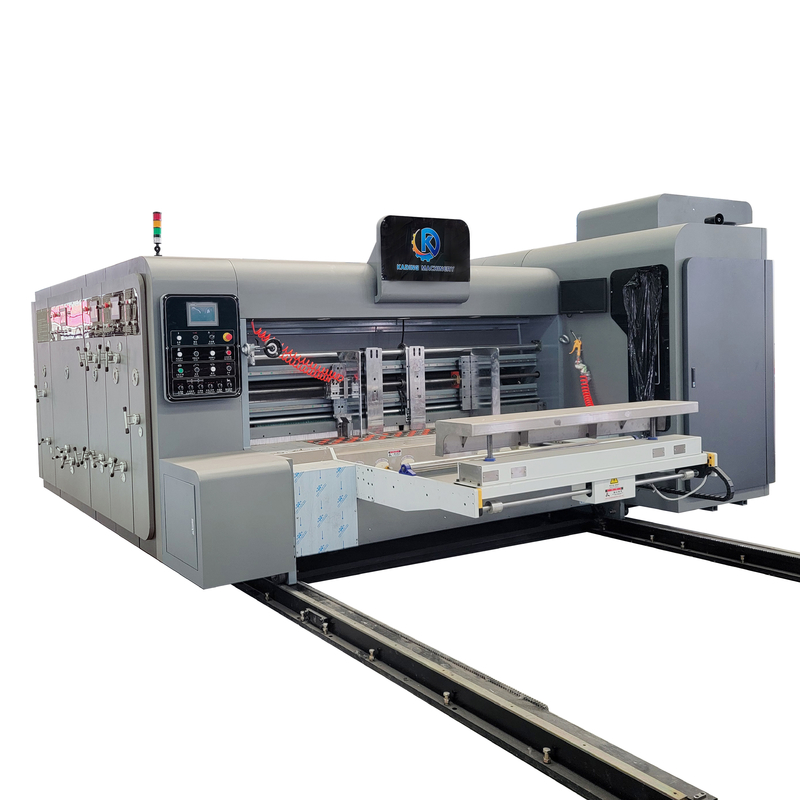

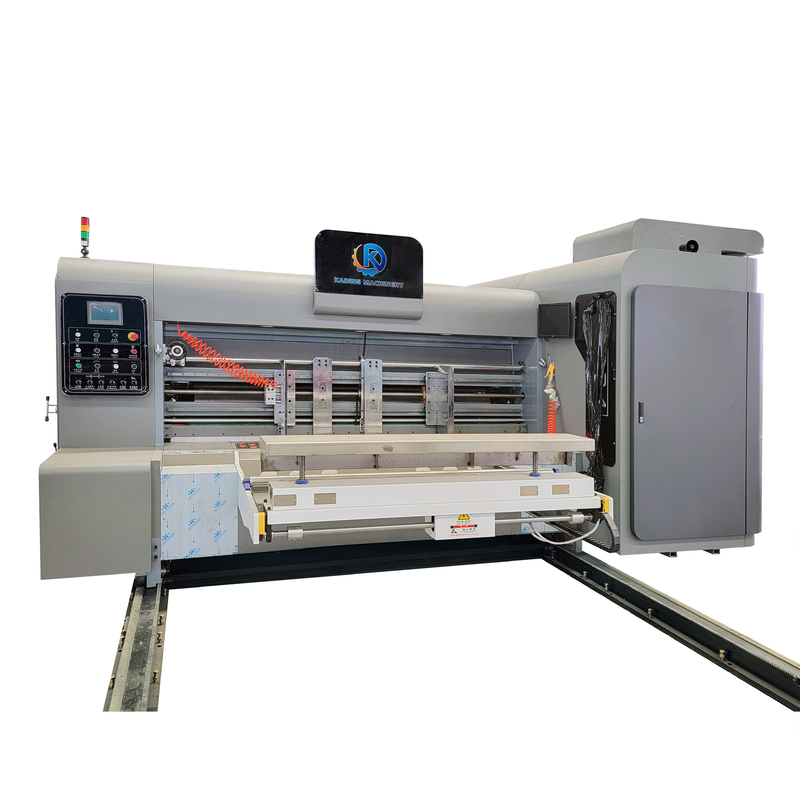

Flexo Water Base Ink Printing Corrugated Box Printing Machine With Slotting Knife For Making Pizza Box
With 15 years of industry experience, we specialize in producing top-tier carton printing, slotting, and die-cutting machines designed for corrugated cardboard processing. Our state-of-the-art corrugated box printing machine is engineered to handle high-volume production with an impressive output rate of up to 180 sheets per minute, ensuring efficiency and reliability in every operation.
Printing Slotting Die Cutting Machine Parameters
| Model |
KAF-1224 |
KAF-1228 |
KAF-1624 |
KAF-1628 |
KAF-1632 |
| Max.mechanical speed (pcs/min) |
180 |
180 |
160 |
160 |
160 |
| Max.feeding size (mm) |
1200*2600 |
1200*3000 |
1600*2600 |
1600*3000 |
1600*3400 |
| Min.feeding size (mm) |
720*340 |
720*340 |
720*420 |
720*420 |
720*420 |
| Skip feeding size (mm) |
1400*2600 |
1400*3000 |
1800*2600 |
1800*3000 |
1800*3400 |
| Valid printing area (mm) |
1200*2400 |
1200*2800 |
1600*2400 |
1600*2800 |
1600*3200 |
| Printing plate thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
| Min.slotting space (Upper knife)(mm) |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
| Min.slotting space (Lower knife)(mm) |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
| Max.slotting depth (mm) |
300 |
300 |
400 |
400 |
400 |
| *If need higher speed or other configuration, please ask our salesman for more details. |
Our machines are meticulously designed with several distinct sections, each crafted to enhance productivity:
Paper Feeding Section: Featuring a servo motor for precise paper handling, this section guarantees accurate feeding, reducing errors and waste. This precision ensures that your production line runs smoothly, minimizing downtime and maximizing output.
Printing Section: This versatile section of corrugated box printing machine can be tailored to meet various printing requirements. For detailed and intricate patterns, choose ceramic anilox rollers combined with doctor blades for superior print quality. For simpler designs, metal anilox rollers and rubber rollers offer a cost-effective solution without compromising on performance.
Slotting Section: Equipped with fully automated adjustment capabilities, this section allows for rapid changes between different orders. With settings stored in the PLC system, the machine can reconfigure in under three minutes, significantly cutting down setup time and boosting overall efficiency.
Die-Cutting Section: Ideal for producing custom-shaped cartons such as pizza boxes,fruit cartons, ice cream box, etc., Whether for standard or bespoke designs, our corrugated box printing machine delivers high-quality corrugated cartons.
Our corrugated box printing machine is backed by a team of skilled engineers who are dedicated to providing expert support and solutions. Whether you are upgrading existing equipment or setting up a new production line, we offer professional guidance to help you select the right machinery for your business.
Experience how our corrugated box printing machine can revolutionize your production process. Contact us today!
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
