High Printing Accuracy Cardboard Box Printer Machine With Slotting Die Cutting Machine
Whether you are a senior practitioner in the industry, or a new practitioner who is ready to build a carton factory from scratch, you will be curious about what our machines be like. This article will introduce several different configurations of our cardboard box printer machine for you.
Printing Slotting Die Cutting Machine Parameters
| Model |
KAF-1224 |
KAF-1228 |
KAF-1624 |
KAF-1628 |
KAF-1632 |
| Max.mechanical speed (pcs/min) |
180 |
180 |
160 |
160 |
160 |
| Max.feeding size (mm) |
1200*2600 |
1200*3000 |
1600*2600 |
1600*3000 |
1600*3400 |
| Min.feeding size (mm) |
720*340 |
720*340 |
720*420 |
720*420 |
720*420 |
| Skip feeding size (mm) |
1400*2600 |
1400*3000 |
1800*2600 |
1800*3000 |
1800*3400 |
| Valid printing area (mm) |
1200*2400 |
1200*2800 |
1600*2400 |
1600*2800 |
1600*3200 |
| Printing plate thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
| Min.slotting space (Upper knife)(mm) |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
130*130*130*130 |
| Min.slotting space (Lower knife)(mm) |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
260*70*260*70 |
| Max.slotting depth (mm) |
300 |
300 |
400 |
400 |
400 |
| *If need higher speed or other configuration, please ask our salesman for more details. |
Configuration1:Chain feeding printing slotting die cutting machine + semi automatic stitching/ gluing machine + semi automatic PP/PE belt strapping machine.
Configuration1 contains the most basic configuration,Best price but lowest production speed, at the same time ,every part of the production process needs manual operation.
Configuration2:Paper feeding machine + chain feeding printing slotting die cutting machine +semi auto stitching/gluing machine +semi automatic PP/PE belt strapping machine.
Configuration2 add a paper feeding machine in front of feeding table, better paper feeding speed and less manual paper feeding operation compared with solution1. But other parts still need manual operation.
Configuration3:Low / High speed automatic lead edge feeding cardboard box printer machine with slotting die cutting machine + semi auto stitching/gluing machine + semi auto PP/PE belt strapping machine.
Configuration3 contains single cover low speed and double cover high speed lead edge feeding cardboard box printer machine, which uses automatic lead edge feeding ,can improve carton box production speed. But other parts still need manual operation.
Configuration4:
Single cover low speed automatic lead edge feeding cardboard box printer machine + automatic gluing/stitching machine or automatic gluing stitching machine + automatic PP/PE belt strapping machine.
Configuration4 is the first full automatic solution,which all machine are automatic machine. Automatic gluing/stitching and strapping machine make the subsequent carton processing speed improved. At the same time, the need for manual operation is reduced.
Configuration5:
Double cover high speed lead edge feeding printing slotting die cutting machine + automatic gluing/stitching machine or automatic gluing stitching machine + automatic PP/PE belt strapping machine.
Configuration5 uses high speed lead edge feeding,although other parts are the sane ,it still makes the overall working speed even faster than solution4.
Configuration6:
High speed lead edge feeding printing slotting die cutting machine in line with folder gluer + automatic PP/PE belt strapping machine.
Configuration6 is the first production line solution, all machine can work together in line, make overall production process almost labor free.
Configuration7:
High speed vacuum suction lead edge feeding printing slotting die cutting machine in line with folder gluer + automatic PP/PE belt strapping machine.
Configuration7 based on solution6 ,added a vacuum suction system.Vacuum suction makes solution7 the fastest working speed of all solutions, also the lowest damage to the cardboard.
Interested In our cardboard box printer machine? Please send us quotation.

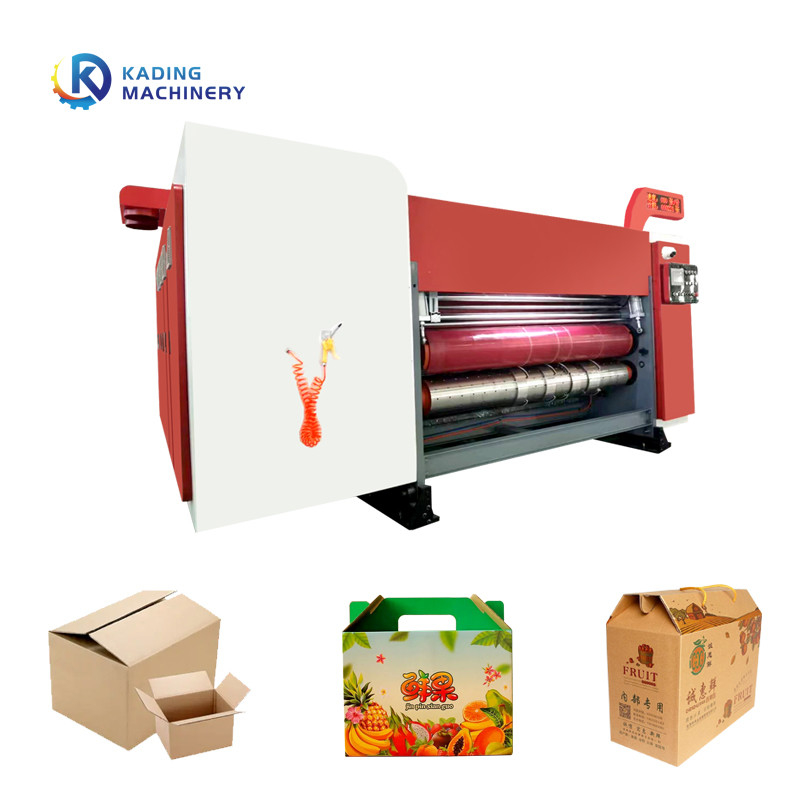

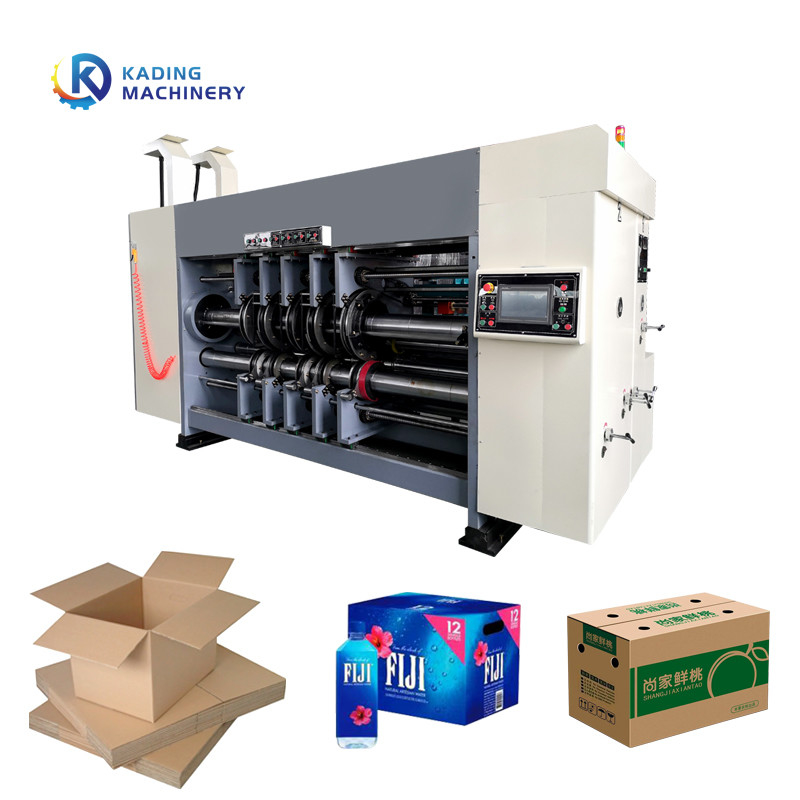

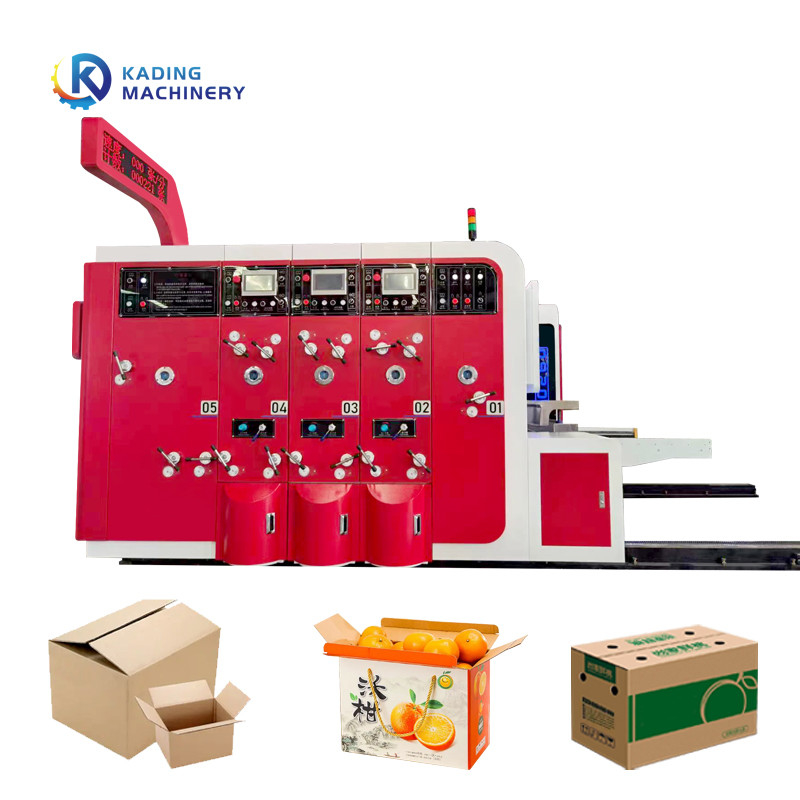

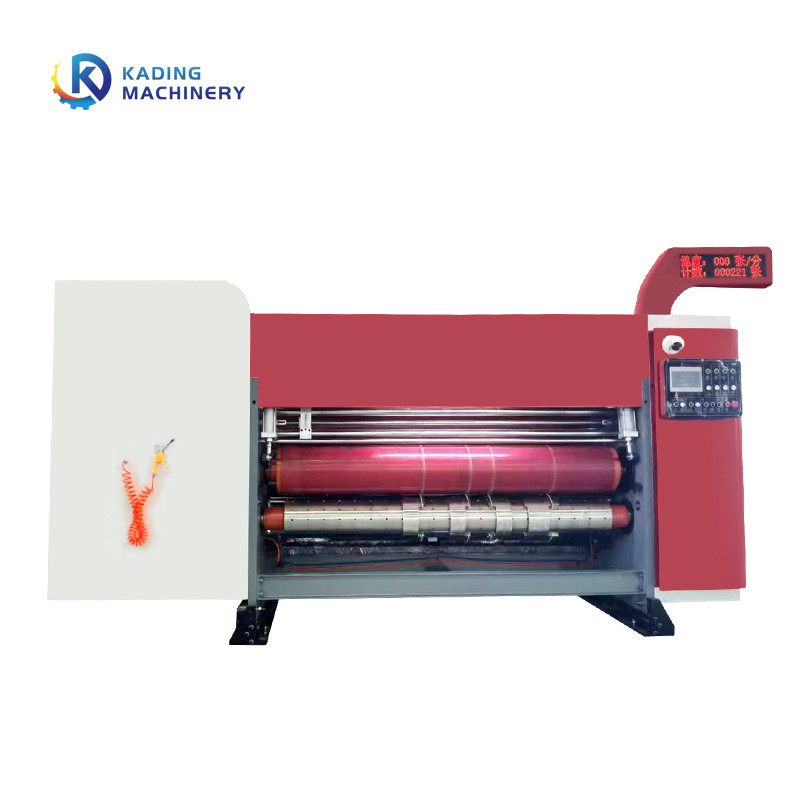

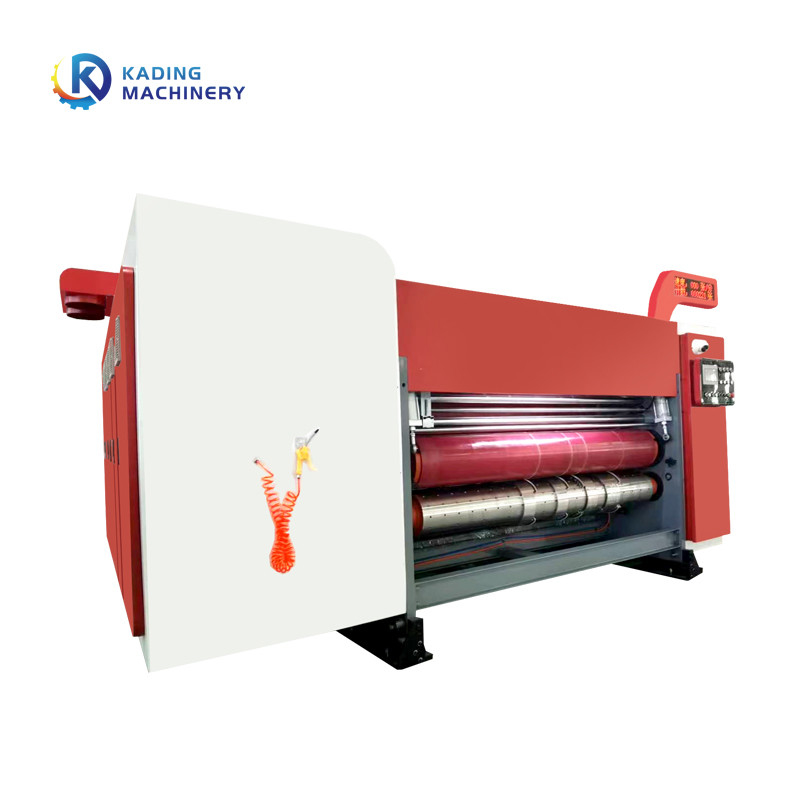

Corrugated Box Printing Machine Picture
Q: Are you a factory or a trading company?
A: We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
