Place of Origin:
DONGGUANG,CHINA
Brand Name:
KADING
Certification:
CE
Model Number:
KAF
Contact Us
This flexo box machine with slotter die cutter combines flexographic printing technology with slot cutting and die-cutting functions, which are able to print beautiful patterns on the surface of the box, making the product more attractive and unique. At the same time, the notch cutting and die-cutting functions can accurately cut the printed cardboard into the required shapes, ensuring the production of high-quality, standard boxes to meet the production of pizza boxes of different specifications and design requirements.
Printing Slotting Die Cutting Machine Parameters
Model | KAF-1224 | KAF-1228 | KAF-1624 | KAF-1628 | KAF-1632 |
Max.mechanical speed (pcs/min) | 180 | 180 | 160 | 160 | 160 |
Max.feeding size (mm) | 1200*2600 | 1200*3000 | 1600*2600 | 1600*3000 | 1600*3400 |
Min.feeding size (mm) | 720*340 | 720*340 | 720*420 | 720*420 | 720*420 |
Skip feeding size (mm) | 1400*2600 | 1400*3000 | 1800*2600 | 1800*3000 | 1800*3400 |
Valid printing area (mm) | 1200*2400 | 1200*2800 | 1600*2400 | 1600*2800 | 1600*3200 |
Printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Min.slotting space (Upper knife)(mm) | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 | 130*130*130*130 |
Min.slotting space (Lower knife)(mm) | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 | 260*70*260*70 |
Max.slotting depth (mm) | 300 | 300 | 400 | 400 | 400 |
*If need higher speed or other configuration, please ask our salesman for more details. |
This flexo box machine with slotter die cutter uses flexographic printing technology, which enables high-quality and high-precision printing on the surface of the carton box, allowing various patterns to be vividly displayed on the box no matter how complex the pattern is. This technology enhances the visual appeal of the box's appearance while giving the pizza box more creative and personalised options.
The flexo box machine's slotting and die-cutting capabilities mean that the prepared cardboard can be cut to the exact shape and size desired by the pizza box manufacturer. This function not only ensures that the cartons can be produced with precision, but improves the quality of the cartons.The ability to produce pizza boxes in standard sizes, but also the flexibility to respond to customer-specific needs, allowing for personalisation.This versatility allows the machine to maximise efficiency and minimise waste, giving pizza box producers more choice and flexibility.
In terms of environmental protection, this flexo box machine adopts an energy-saving and environmentally friendly design that effectively reduces energy consumption and meets green production standards. Its automated operation and high efficiency also mean that energy and raw materials are utilised more efficiently, reducing waste and emissions in line with high international environmental standards and sustainable development.
If you are currently thinking of opening a carton factory, please send us an inquiry!

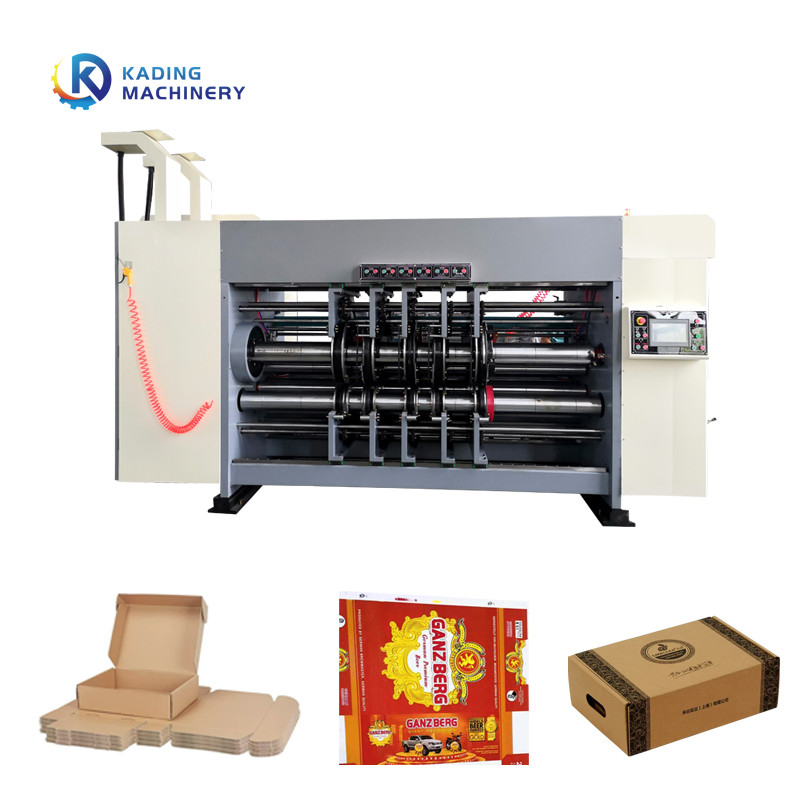

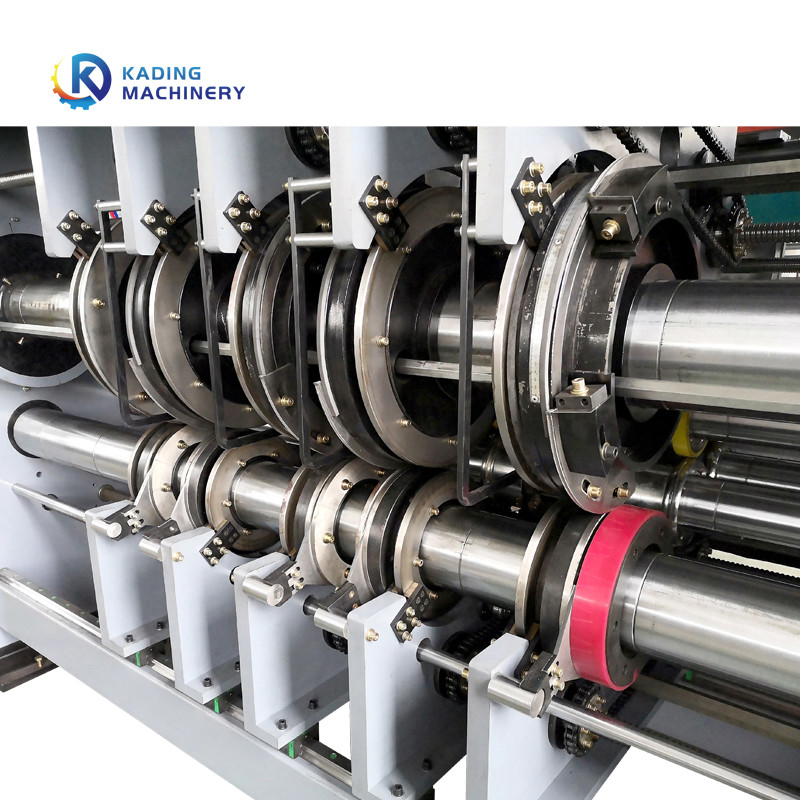

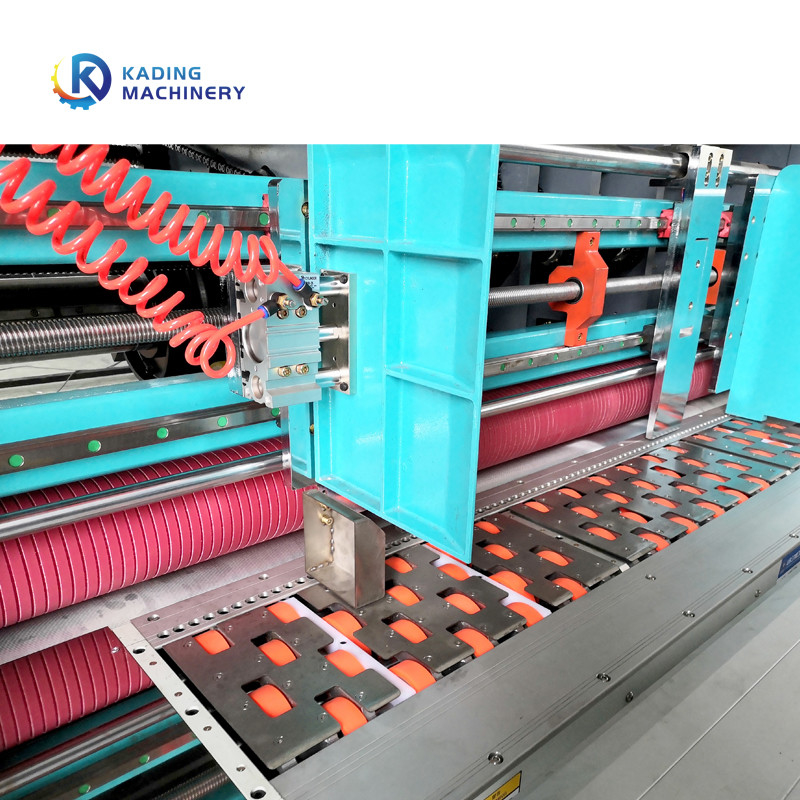

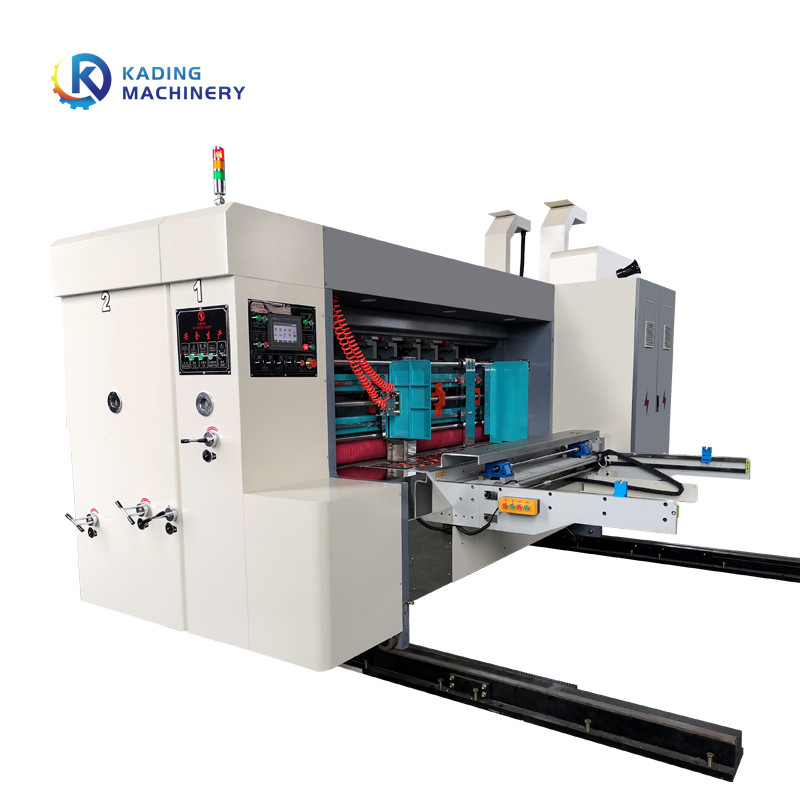

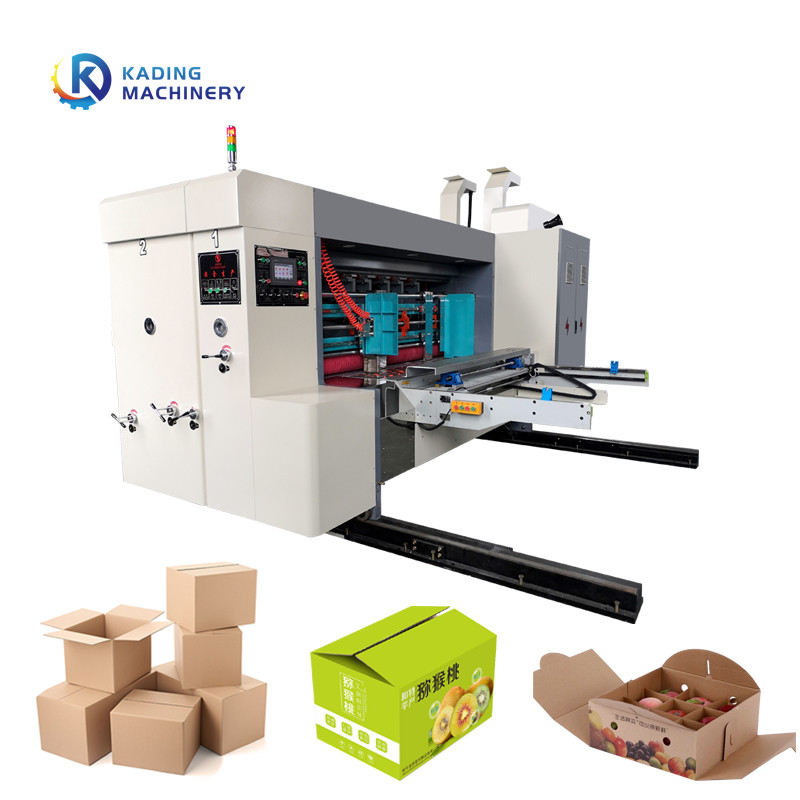

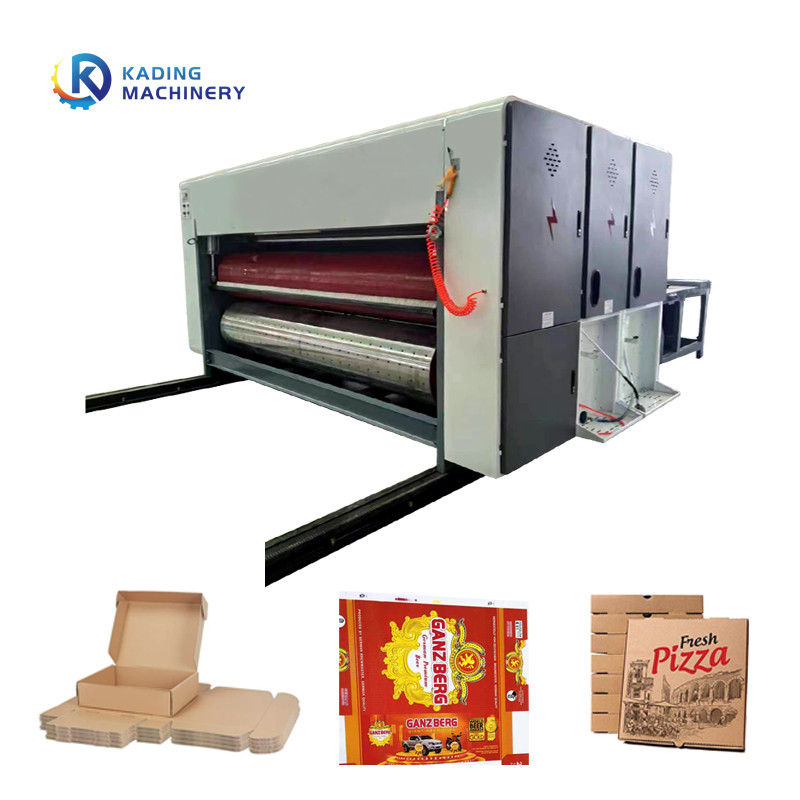

Corrugated Box Printing Machine Picture
Q: Are you a factory or a trading company?
A: We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
