Automatic Lead Edge Feeding Corrugated Box Printing Machine For Making Pizza Boxes

Automatic Lead Edge Feeding Corrugated Box Printing Machine For Making Pizza Boxes

The corrugated box printing machine is an efficient corrugated paper processing equipment that can realize multi-color overprinting, die-cutting and creasing of cardboard on a production line. It mainly includes the front edge paper feeding unit, printing unit and die-cutting unit.

During daily production process, the rolls or small wheels of the leading edge feeding unit do cyclic acceleration and deceleration movement, and the rolls of the printing unit and the die-cutting unit do uniform movement. The corrugated board is fed into the carton press with the movement of the feed roller or the feed wheel of the paper feeding unit, and the subsequent production steps are carried out

Printing Slotting Die Cutting Machine Parameters

The paper feeding methods of automatic corrugated box printing machine include ordinary leading edge paper feeding and vacuum adsorption leading edge paper feeding. Comparing this two kind of feeding method, ordinary leading edge paper feeding, the production difficulty and production cost are lower, but it will cause damage to the corrugated cardboard, and the paper feeding of vacuum adsorption leading edge is faster and more accurate. It also does less damage to the corrugated cardboard

The front edge paper feeding is based on the front edge of the cardboard. Under the periodic acceleration, synchronization and deceleration of the paper feeding rubber wheel, the cardboard is lifted and dropped in time through the grid, and the stacked cardboard is continuously or intermittently fed into the printing unit.

In the processing and manufacturing of corrugated boxes, if the paper feeding is deviated, problems such as printing overprint inaccuracy, die-cutting position offset, and creasing line deviation will occur, so the paper feeding process is very important.

For corrugated box printing machines, the paper feeding accuracy of the paper feeding mechanism is crucial to the printing quality; the traditional front edge paper feeding mechanism uses a high-precision mechanical cam mechanism to control the paper feeding, and the vacuum adsorption front edge paper feeding part mainly includes an electronic cam vacuum adsorption paper feeding mechanism and a paper feeding roller. The electronic cam vacuum adsorption paper feeding mechanism uses the negative pressure generated by the fan to make the paperboard tightly adsorbed on the paper feeding platform. Two electronic cam servo motors drive the paper feeding platform to reciprocate synchronously between the upper and lower positions of the paper feeding, and cooperate with the paper feeding roller and the paper feeding roller to complete the paperboard transportation.

Interested in our corrugated box printing machine?Please feel free to send us quotations.

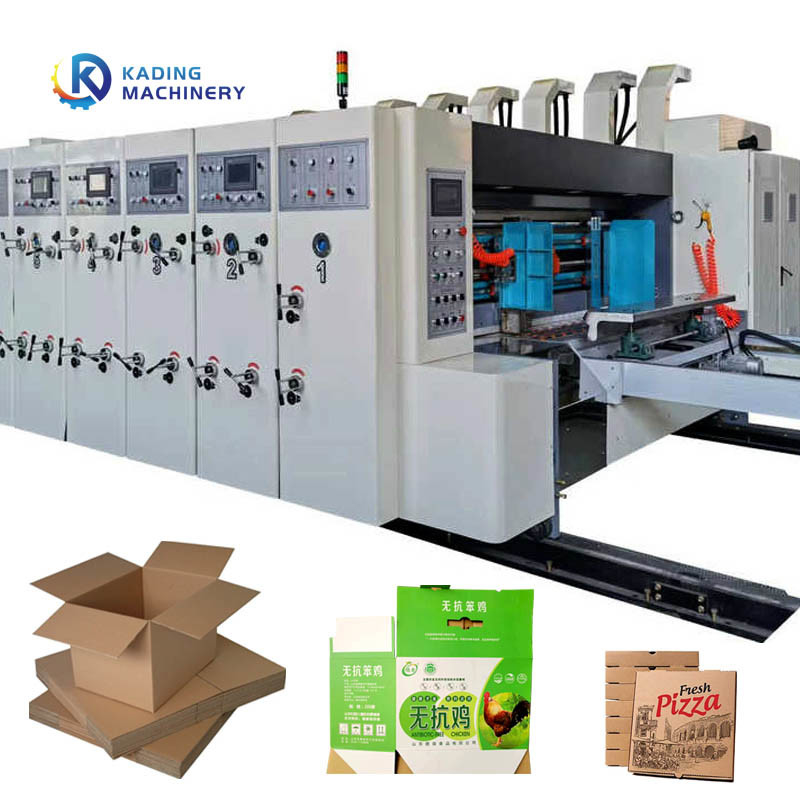

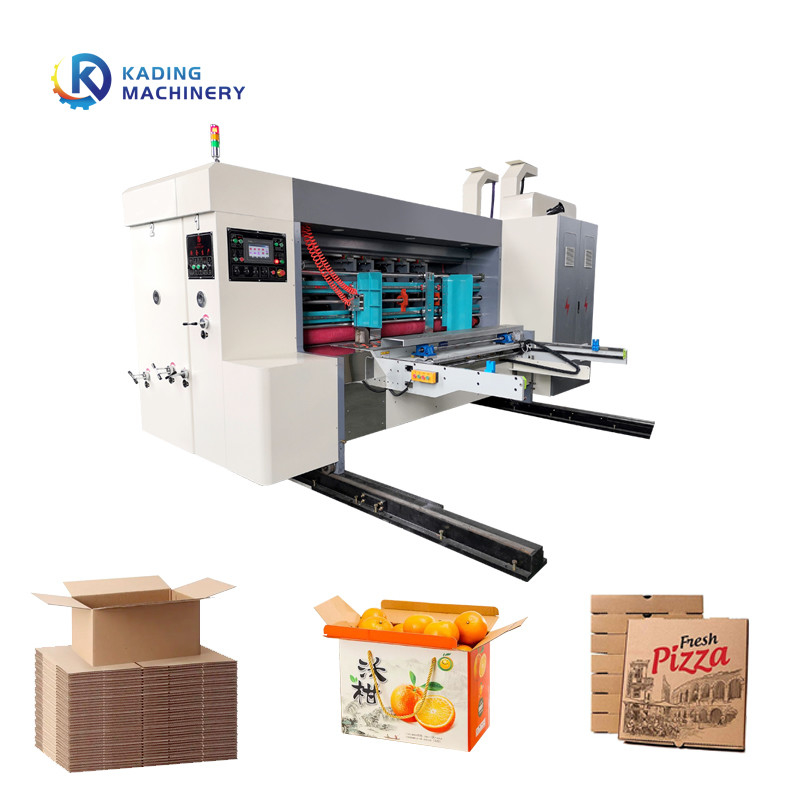

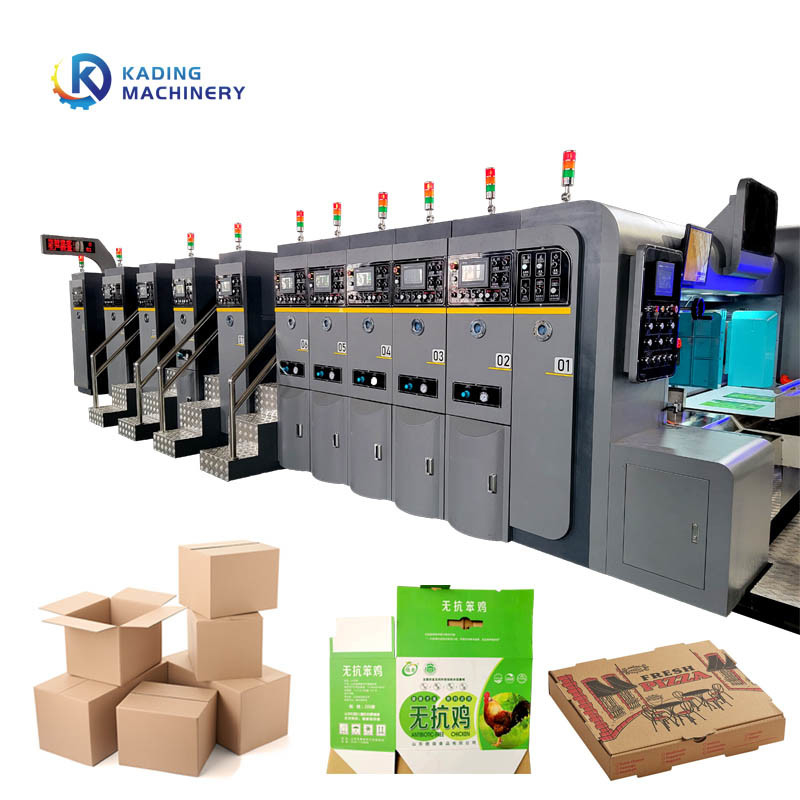

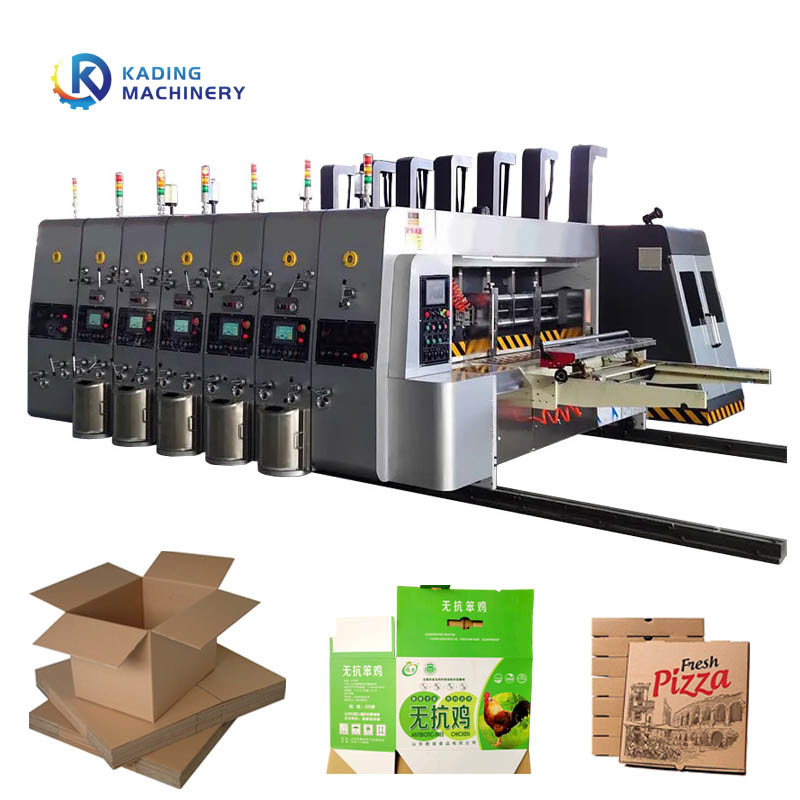

Corrugated Box Printing Machine Picture

Q: Are you a factory or a trading company?
A: We are a direct manufacturer which is located in Dongguang county, Cangzhou city, we mainly manufacturing corugated carton box printing slotting die cutting machine, folding gluing stitching machine, single facer corrugated machine etc. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
