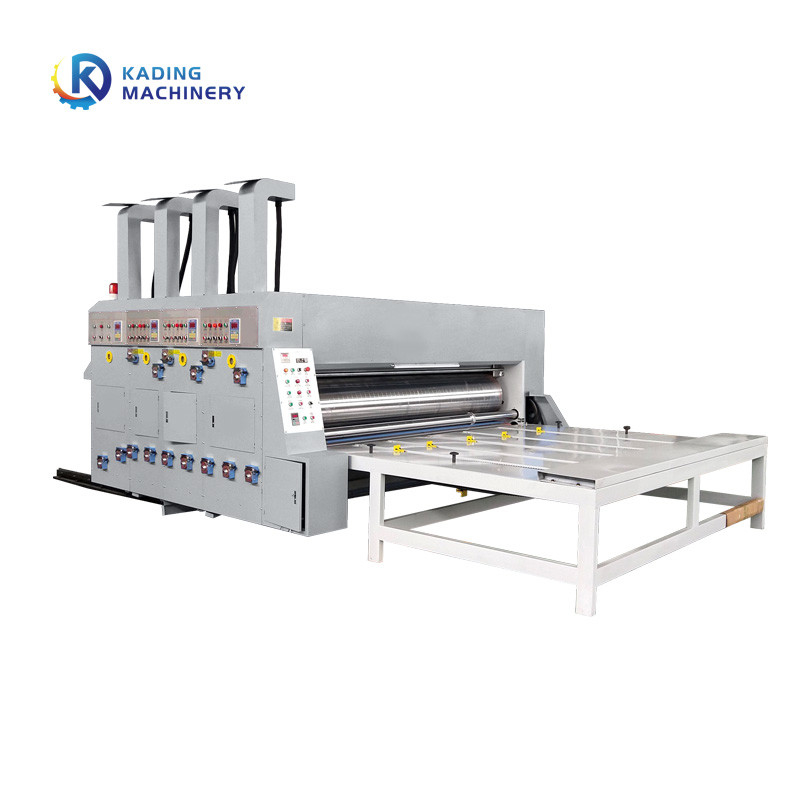

Semi Automatic Corrugated Box Printing Machine With Slotting Die Cutting

Semi Automatic Corrugated Box Printing Machine With Slotting Die Cutting

Semi automatic corrugated carton printing machine is a special equipment for printing, slotting and die cutting corrugated cartons. It combines various functions such as printing, slotting and die-cutting, which can achieve one-time processing of corrugated cartons, improve production efficiency and reduce labour costs. The equipment usually includes an axial-flow inkjet printing system, slotting box function module and die-cutting function module, which can meet the processing needs of different types of corrugated cartons.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Use and characteristics:


The equipment has a printing function that allows you to print a variety of logos, text or patterns on the surface of corrugated cardboard boxes so company logos, product information, barcodes, etc. can be easily printed on the boxes to meet the individual needs of customers.It is also equipped with a slotting function that enables the cardboard to be slotted according to the design requirements of the case. This allows the cardboard to be easily folded into the shape of the box, increasing productivity and speed. In addition to printing and slotting, the machine also has a die-cutting function that enables it to die-cut on cardboard as required, boxes with specific shapes and sizes can be easily produced to meet the customisation needs of different customers.Due to the integrated printing, slotting and die-cutting functions of the machine, it is suitable for the production of corrugated cartons with different specifications and requirements. Both normal square boxes and shaped boxes can be processed and produced on this equipment.The versatility of the equipment indicates that multiple processes can be completed on the same machine, reducing the time required for equipment changeover and adjustment and increasing productivity.

This type of equipment combines manual operation and equipment automation features. Some basic operations require manual intervention by the operator, such as placing the cardboard, setting parameters, etc., while other complex processes, such as printing, slotting and die-cutting, are performed automatically by the machine. Due to the simple and intuitive operation of the equipment, the operator only needs to undergo simple training to master the basic operating skills. This reduces operator skill requirements and training costs, as well as the possibility of human error.

If you are interested in this Semi Automatic Corrugated Box Printing Machine you can contact us.

Rotary Die Cutting Machine Details

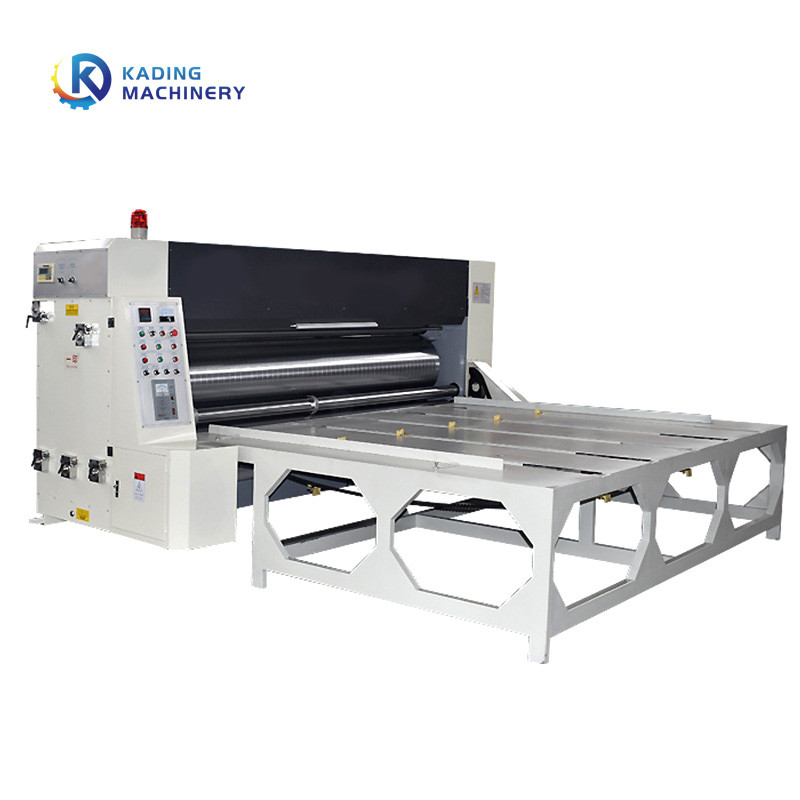

Chain Feeding Unit

1.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly

and vibrate less;

2.The paper feeding table is steel material. The wall is strong and durable;

3.Automatically count the production quantities. touch screen display;

4.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;

transport, customers can choose to continue or skip delivery

5.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control

switch, as to realize the emergency stop, stop or restore the paper feeding.

REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.

SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.

FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is

wear-resistant and smooth.

ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.

DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the

clarity of the printing, and reduce paper waste.

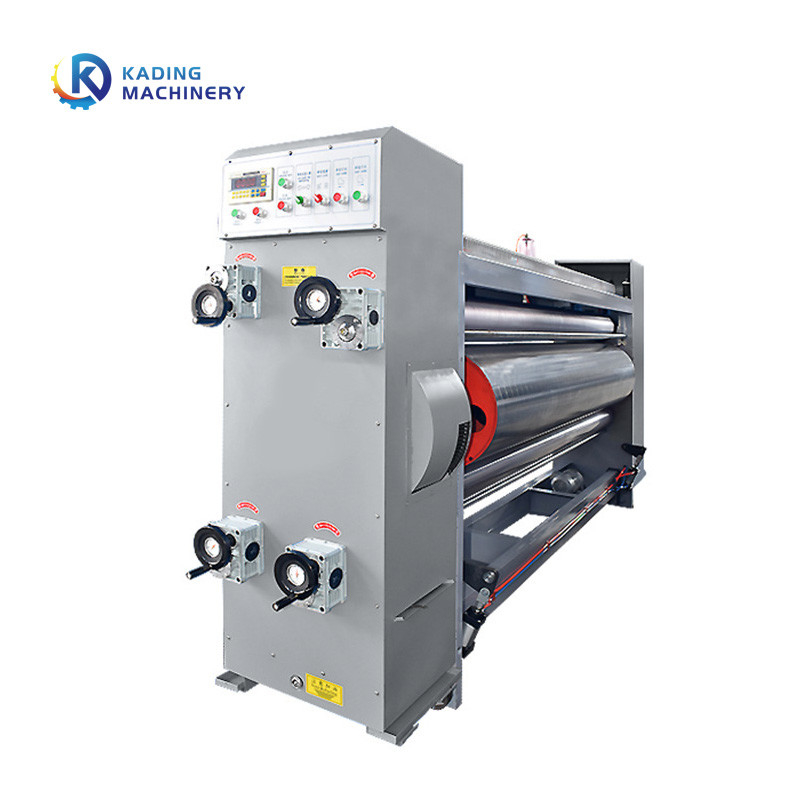

Printing Unit

Printing rollers are usually made of metal or rubber. Metal rollers are usually used to transfer ink to the printing plate,

while rubber rollers are used to transfer ink from the printing plate to the paperboard.

Printing rollers are often given a surface treatment in order to improve print quality and extend the life of the rollers.

For example, metal rollers may be chrome-plated or ceramic-coated to increase surface hardness and wear resistance.

Rubber rollers, on the other hand, may be treated with a special rubber coating to improve ink transfer efficiency and print quality.

INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing

plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.

PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.

PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.

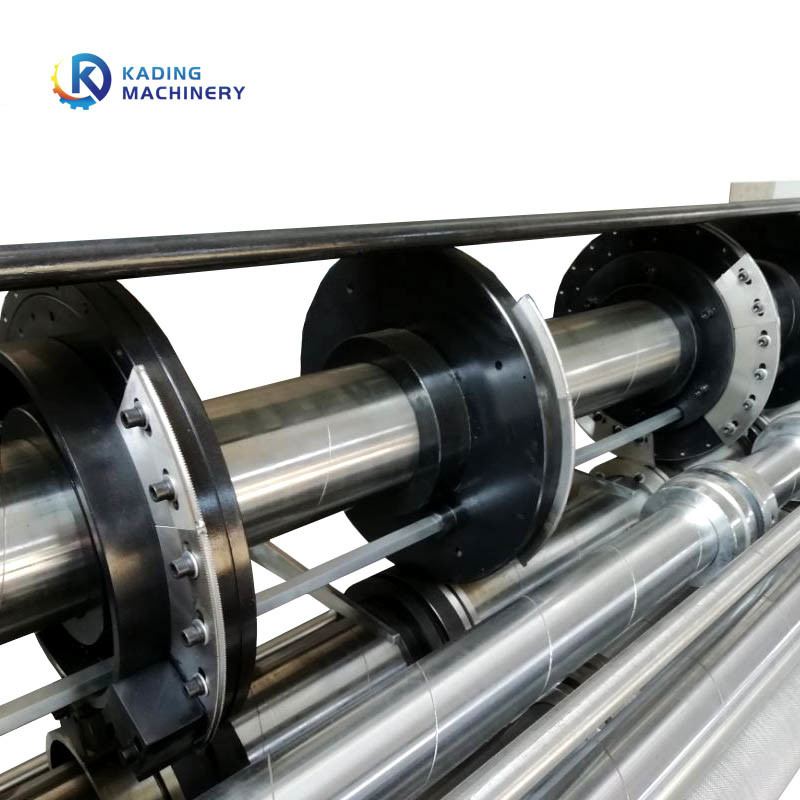

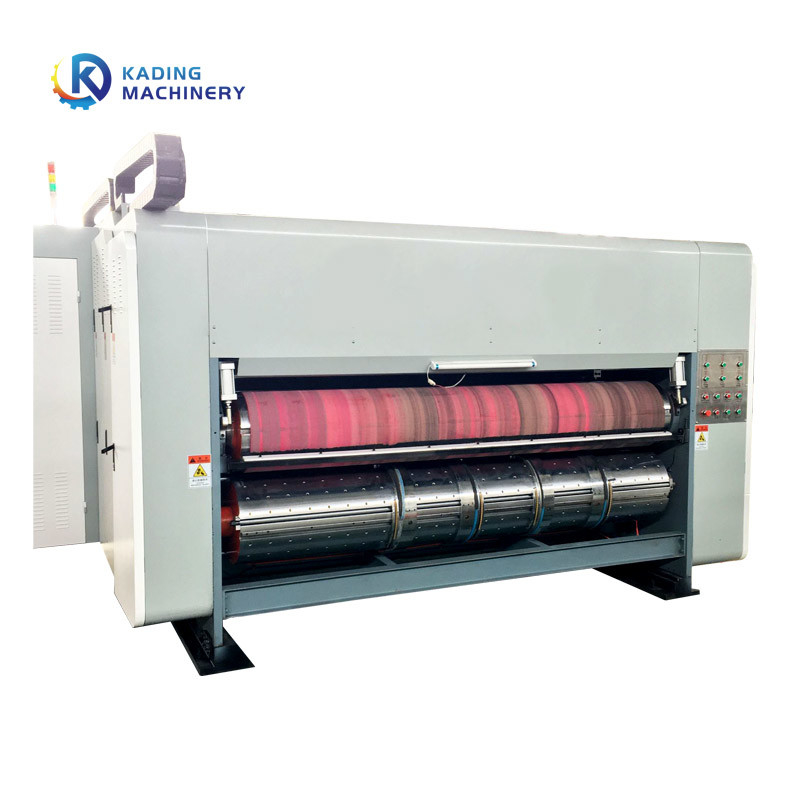

Slotting Unit

CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,

which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.

Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.

OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.

SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment

and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.

CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.

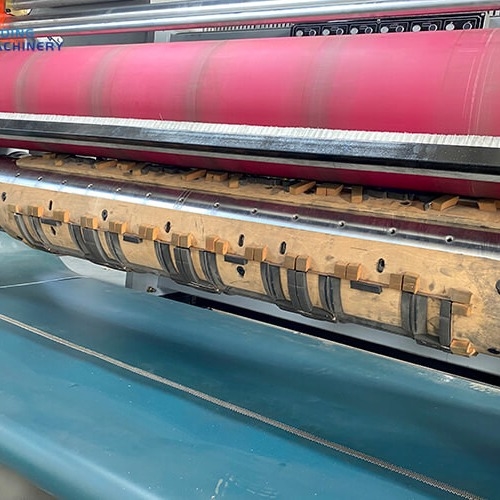

Die Cutting Unit

OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.

PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial

direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried

out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation

range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and

negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the

adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will

automatically rise, so as to avoid damaging to the rubber pad.

PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the

original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,

the brake mechanism limits the rotation of the machine and keeps the die cut
