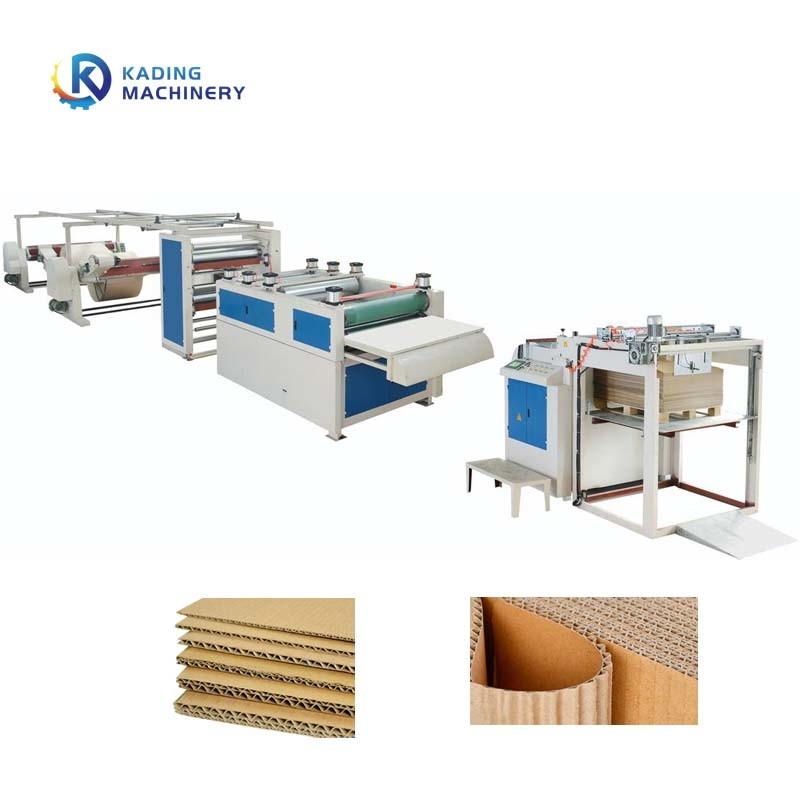

High Speed Five Layers Corrugated Line To Making Corrugated Cardboard And Carton

High Speed Five Layers Corrugated Line To Making Corrugated Cardboard And Carton

Production technology is constantly updated and iterated. The original corrugated paper production technology has been eliminated. The new corrugated paperboard production line technology has faster production speed, lower raw material loss and higher efficiency based on the original. The produced paperboard is strong and durable,with good shape.It is beautiful and has no burrs, making the printed cardboard and cartons more beautiful.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Key Features of Our Corrugated Cardboard Production Line:

Machine configuration:

Corrugated line have symmetrical structure, which can be installed at the same time two bundle of paper tube; The use of electric drive to complete base paper clamping, lifting, loosen, moving in and around translational action.It adopts cover-type structure, with high pressure blower and suction silencer device.Air supply and the electrical cabinet focused on the same operation from hosts not less than 1.5 m.Frame and panel wall with cast iron structure, wall thickness of 130mm.Main drive with built-in oil filled gearbox transmission.Corrugated roller made of 48CrMo alloy steel, quenched and tempered, medium-frequency quenching, surface grinding, Corrugating roller diameter DIA 268mm of surface hardness HRC58 or more (service life not less than Locke millions running metres, corrugated roller finished wall thickness of about 55mm, repairs twice) critical parts such as rollers, pressure rollers wafangdian bearing high temperature bearings.Pressure roller DIA 270mm, surface grinding and chrome-plating process, the cylinder control pressure, material for carbon steel, 45th, quenching and tempering (with device).(Finished wall thickness of about 55mm) Gluing wall plate armed structure, pneumatic controls, glue roller 25 line pits dot the surface processing ,after the hard chromium plating process, squeegee roller surface hard chromium plating grinding.Corrugating roller, pressure roller and raw materials provided by the Zhongyuan special steel, corrugated rolls for 0.10 , high pressure roller for 0.075.being with the positioning device.Clamping cylinder adopts 160mm pre-heating roller adopts two bars of seamless steel pipe named as 240mm and 270mm, which is originated from Tian Gang .

working principle:

Corrugated line is equipment used to manufacture corrugated cardboard or corrugated boxes. First, a large roll of base paper (mother roll) is used to feed the base paper into the production line through the equipment's paper supply system. Secondly, the base paper goes through a series of operations,such as heating, gluing, etc.,and then enters the corrugated forming part. The key here is the corrugating roller, which presses the raw paper into a series of corrugated shapes. After corrugation is formed, the corrugated board is passed through the glue spraying system and sprayed with adhesive. This allows the layers of corrugated cardboard to stick together. After the bonding is completed, the corrugated cardboard is passed through a drying device to quickly dry the finished cardboard.The dried cardboard is cut longitudinally and transversely by a cutting machine to form corrugated cardboard of the required size. Finally, workers will stack the cut corrugated cardboard and package it. This protects the quality of the cardboard and makes shipping and storage easier.

User instructions:

The supplier sends personnel and the demand side assists.The installation height and operation training are the responsibility of the supplier's engineering and technical personnel,and the purchaser must make foundation and other preparations in advance according to the supplier's requirements. Warranty period:12 months from 20 days after the machine leaves the factory or the date of completion of debugging (whichever is earlier).However,this is excepted due to human factors on the part of the purchaser or lack of normal maintenance and normal wear and tear.

Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located

in Dongguang County, Cangzhou City, Hebei Province.

We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,

2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team

composed of a group of young people with forward thinking, we can make a professional product plan for you

according to your product needs.

Our company's self-produced product lines include carton printing machines, carton die-cutting machines,

and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer

machines, Flute laminating machines, Single facer machines, etc.

If some related products you need are not produced by ourselves, with our mature product supply chain

system, we will also help you purchase products that satisfy you with the most competitive price and the

most guaranteed quality as the standard.

In addition to our own foreign trade business, our factory also cooperates with many trading companies,

so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and

the European Union, and are well received by the majority.

There are also many brand&branded manufacturers among our customers, these factories are very relieved

to entrust the production of some products to us, which is enough to show that our quality and production

conditions are trustworthy.

Cooperate with us, benefit together!
