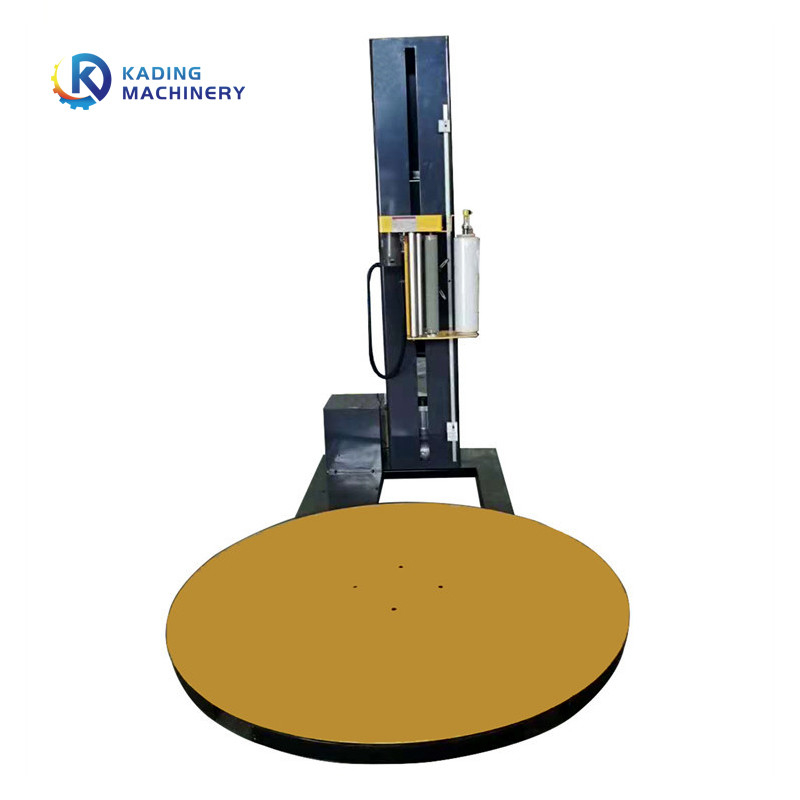

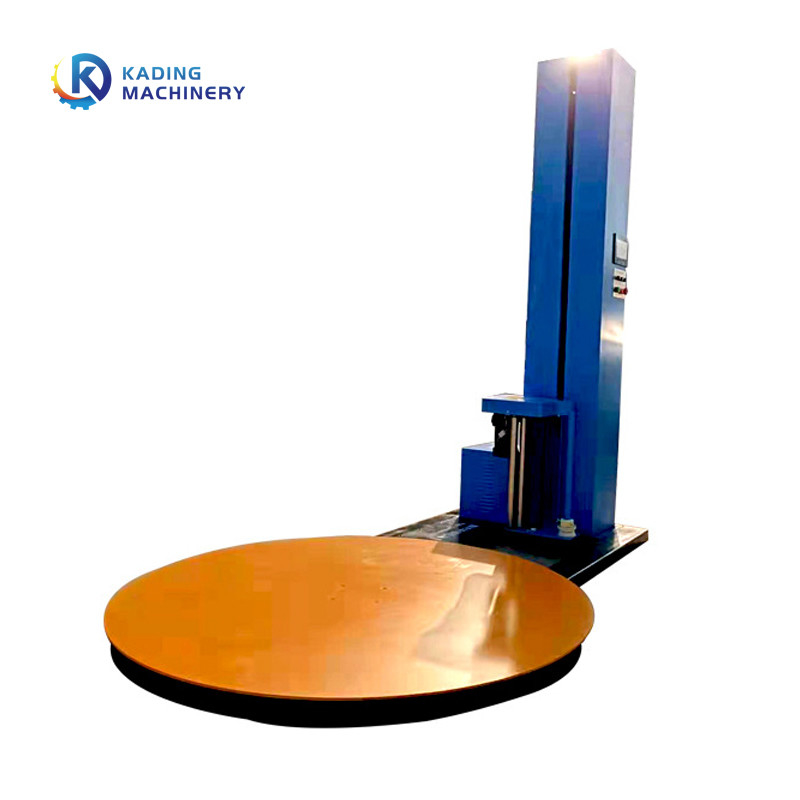

0-10rpm Turntable Speed Automatic Pallet Stretch Wrapper With Pre Stretching System

0-10rpm Turntable Speed Automatic Pallet Stretch Wrapper With Pre Stretching System

10rpm automatic pallet stretch wrapper

1650mm automatic pallet stretch wrapper

2200mm automatic pallet wrapper machine

Place of Origin:

DONGGUANG,CHINA

Brand Name:

KADING

Certification:

CE

Model Number:

KD-FW

Contact Us

Request A Quote
Product Details
Product Name:
Auto Pallet Stretch Wrap Machine Of 0 To 10 Rpm Turntable Speed With Pre Stretching System
Packaging Material:
Plastic Film
Driven Type:
Electric
Packing Efficiency:
20-40pcs/hour
Turntable Loading:
2000kg
Electric Parts:
Well-known Brands
Key Selling Points:
Easy To Operate
Core Components:
Motor, Pallet
Warranty:
1 Year
Key Words:
Auto Pallet Stretch Wrap Machine
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$3000-$4500/Set
Packaging Details
Wrapped by PE film or cotton cloth, also can be customized.
Delivery Time
10-15 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
10 Sets/Month
Product Description

Auto Pallet Stretch Wrap Machine Of 0 To 10 Rpm Turntable Speed With Pre Stretching System

Stretch wrap machines have become essential equipment in the packaging industry, streamlining the process of securing and protecting palletized goods. In this article, we will delve into the characteristics and advantages of these machines, highlighting how they enhance efficiency and optimize packaging operations.



Stretch Wrap Machine Specification



Model KDFW-1650 KDFW-2200 KDFW-2500
Turntable diameter 1650mm 2200mm 2500mm
Max Packing height 2000mm 2500mm 2500mm
Winding area 1300mm x 1300mm 2200mm x2200mm 2500mm x 2500mm
Turntable height 90mm 90mm 90mm
Turntable bearing 2000Kg 2000Kg 2000Kg
Total machine Weight 700Kg 700Kg 700Kg
Total Power 1.5kw 1.5kw 1.5kw
Turntable speed 6-16 rpm/Min 6-16 rpm/Min 6-16 rpm/Min
Packaging Materials LLDPE stretch film LLDPE stretch film LLDPE stretch film
Thickness 17-35um 17-35um 17-35um
film width 500mm 500mm 500mm
Film core diameter 76.2mm 76.2mm 76.2mm
Film roll outer diameter 150mm-350mm 150mm-350mm 150mm-350mm

*Machine's specification is subject to the final confirmation of seller and buyer.



Characteristics

Robust Construction: Large mechanical packaging stretch wrap machines are built with sturdy frames and components to withstand heavy-duty usage in industrial settings. They are designed for durability, ensuring reliable performance even in demanding environments.

Variable Speed and Tension Control: These machines offer variable speed and tension control features, allowing operators to adjust the wrapping process based on the size, shape, and fragility of the goods. This flexibility ensures optimal packaging and prevents damage to the products.

Film Carriage System: The film carriage system of these machines efficiently dispenses stretch film, ensuring uniform application and coverage across the palletized goods. It minimizes film wastage while providing secure and stable wrapping.



Advantages

Increased Efficiency and Productivity: They are significantly improve packaging efficiency by automating the wrapping process. They can handle high volumes of pallets in a short amount of time, increasing productivity and reducing labor requirements.

Consistent and Uniform Wrapping: These machines deliver consistent and uniform stretch wrapping results, eliminating inconsistencies that may arise from manual wrapping. This ensures load stability, minimizing the risk of goods shifting or toppling during transportation.

Enhanced Load Protection: The tight and secure wrapping achieved by these machines provides superior protection to the palletized goods. It guards against dust, moisture, and tampering, safeguarding the integrity and quality of the products during storage and transit.

Cost Reduction: Large mechanical packaging stretch wrap machines optimize film usage, reducing waste and overall packaging costs. The ability to adjust tension and speed ensures efficient film utilization while maintaining load integrity, resulting in savings for businesses.

Worker Safety and Ergonomics: Automating the wrapping process with these machines eliminates the physical strain associated with manual wrapping. Workers are spared from repetitive bending and stretching, reducing the risk of injuries and improving workplace safety.



Conclusion

Stretch wrap machines offer remarkable characteristics and advantages that optimize packaging operations for businesses. Their robust construction, variable speed and tension control, and efficient film dispensing systems ensure consistent and uniform wrapping results. By increasing efficiency, improving load protection, reducing costs, and promoting worker safety, these machines play a pivotal role in streamlining the packaging process. Investing in these machines empowers businesses to enhance productivity, protect their products, and drive success in the competitive packaging industry.
