Place of Origin:
DONGGUANG,CHINA
Brand Name:
KADING
Certification:
CE
Model Number:
KD-FW
Contact Us

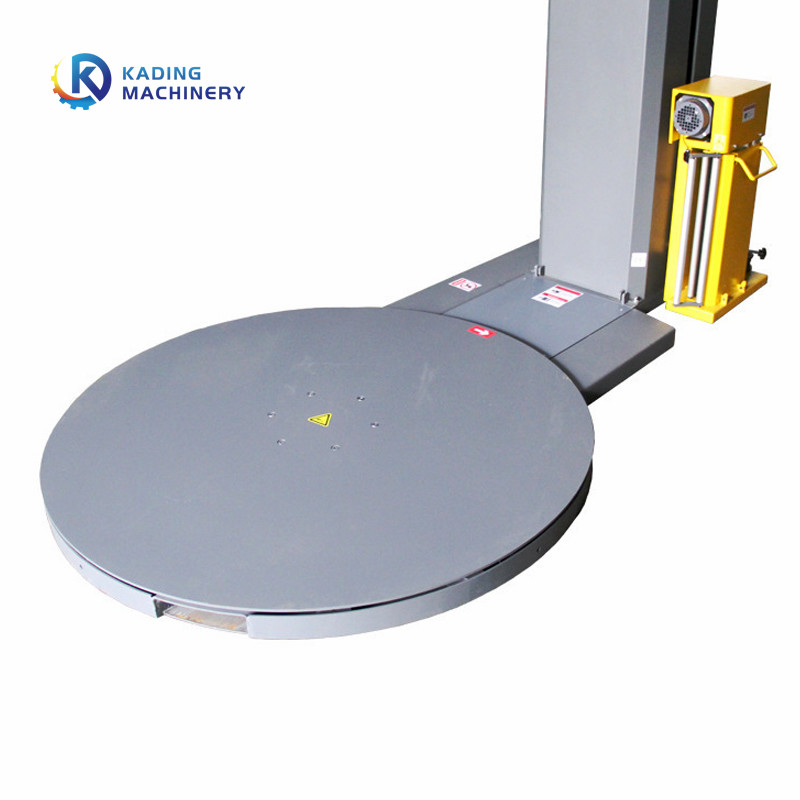

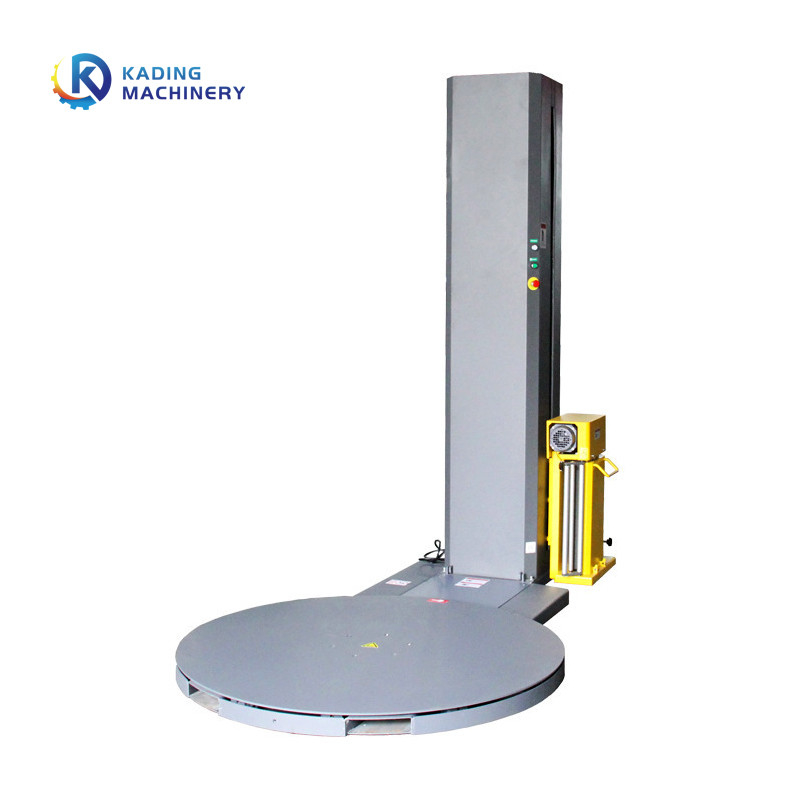

Stretch wrap machines, also known as stretch wrapping machines or stretch film wrappers, are automated devices used to wrap products or palletized loads with stretch film. These machines efficiently stretch and wrap the film around the items, providing stability, protection, and containment. They are commonly used in industries such as logistics, warehousing, manufacturing, and distribution centers. Let's explore more about stretch wrap machines and their benefits.
Stretch Wrap Machine Specification
Model | KDFW-1650 | KDFW-2200 | KDFW-2500 |
Turntable diameter | 1650mm | 2200mm | 2500mm |
Max Packing height | 2000mm | 2500mm | 2500mm |
Winding area | 1300mm x 1300mm | 2200mm x2200mm | 2500mm x 2500mm |
Turntable height | 90mm | 90mm | 90mm |
Turntable bearing | 2000Kg | 2000Kg | 2000Kg |
Total machine Weight | 700Kg | 700Kg | 700Kg |
Total Power | 1.5kw | 1.5kw | 1.5kw |
Turntable speed | 6-16 rpm/Min | 6-16 rpm/Min | 6-16 rpm/Min |
Packaging Materials | LLDPE stretch film | LLDPE stretch film | LLDPE stretch film |
Thickness | 17-35um | 17-35um | 17-35um |
film width | 500mm | 500mm | 500mm |
Film core diameter | 76.2mm | 76.2mm | 76.2mm |
Film roll outer diameter | 150mm-350mm | 150mm-350mm | 150mm-350mm |
*Machine's specification is subject to the final confirmation of seller and buyer.
Efficient and Time-Saving: Stretch wrap machines automate the wrapping process, significantly increasing efficiency and saving time. These machines can wrap products or pallets quickly and consistently, eliminating the need for manual labor. With adjustable settings and programmed controls, operators can set the desired wrapping parameters, allowing for consistent and efficient wrapping of various load sizes and shapes.
Load Stability and Protection: The primary purpose of stretch wrap machines is to provide load stability and protection. The stretch film tightly secures the items or palletized loads, preventing movement, shifting, or toppling during transportation or storage. This reduces the risk of product damage, improving the overall safety and integrity of the load. Additionally, the film acts as a barrier, protecting the items from dust, moisture, and other external factors.
Versatile Wrapping Options: Stretch wrap machines offer versatile wrapping options to accommodate different load types and sizes. Operators can adjust the tension, film overlap, and number of film layers applied to meet specific requirements. Whether it's a single item, multiple products, or a palletized load, these machines can adapt to provide the appropriate wrapping solution.
Film Efficiency and Cost Savings: By using stretch wrap machines, businesses can achieve cost savings in film usage. These machines ensure efficient film consumption by stretching the film tightly around the load, reducing the amount of film required. This leads to cost savings and minimizes film waste. Additionally, the secure wrapping provided by the machines reduces the risk of load damage during transit, resulting in fewer product losses and returns.
Improved Workplace Safety: Stretch wrap machines contribute to improved workplace safety by reducing manual handling and physical strain. Manual wrapping of products or pallets can be labor-intensive and increase the risk of injuries, such as strains and sprains. With automated wrapping, operators can avoid repetitive manual labor, reducing the strain on workers and creating a safer work environment.
Customization and Control: Modern stretch wrap machines offer advanced features that allow for customization and control. Operators can adjust wrapping parameters, such as film tension, film stretch levels, and wrap patterns, to suit specific load requirements. This level of customization ensures consistent wrapping quality and allows businesses to meet unique customer demands.
In summary, stretch wrap machines provide efficient, reliable, and customizable solutions for securing and protecting products or palletized loads. Their ability to increase efficiency, enhance load stability, protect items, and generate cost savings makes them essential equipment in industries dealing with packaging and logistics. By utilizing stretch wrap machines, businesses can optimize their wrapping processes, reduce risks, and improve overall productivity.
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers, 2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team composed of a group of young people with forward thinking, we can make a professional product plan for you according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines, and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain system, we will also help you purchase products that satisfy you with the most competitive price and the most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies, so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved to entrust the production of some products to us, which is enough to show that our quality and production conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
