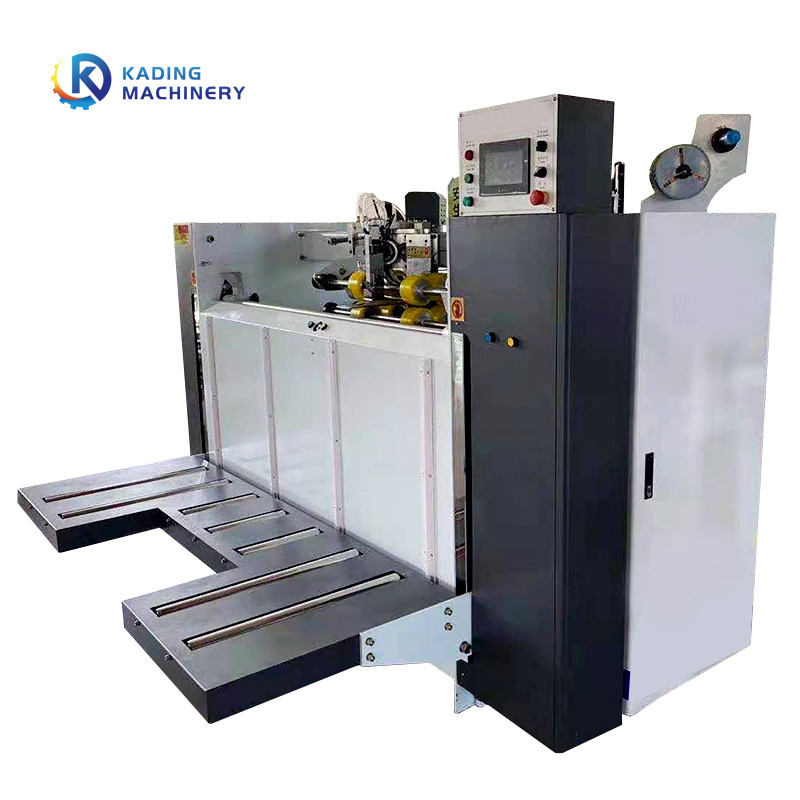

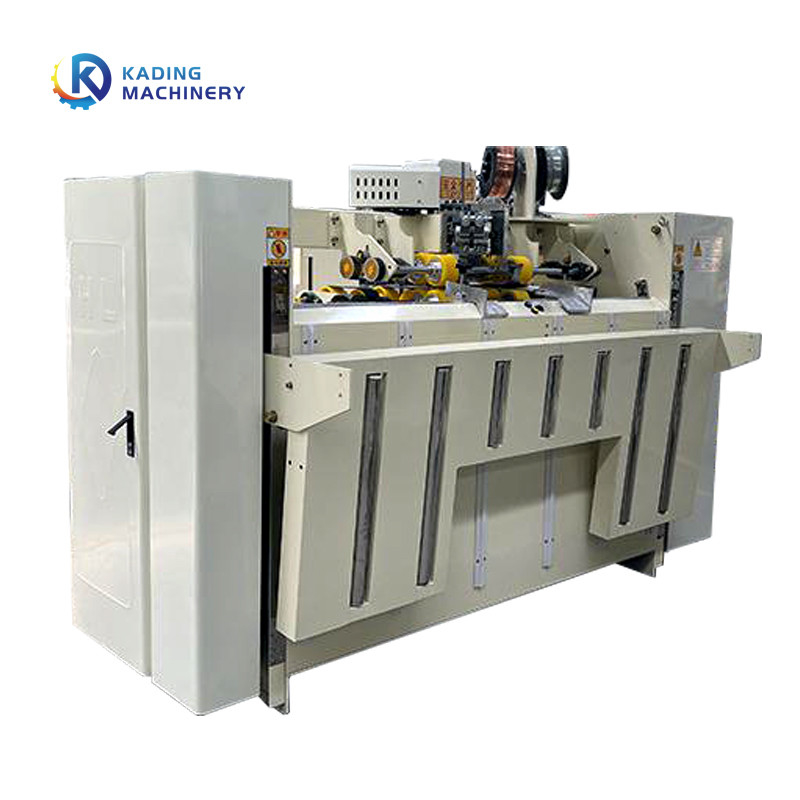

Semi Automatic Corrugated Box Stitching Machine With Vacuum Suction Paper Feeding For Box Making

Semi Automatic Corrugated Box Stitching Machine With Vacuum Suction Paper Feeding For Box Making

The corrugated box stitching machine has revolutionized the packaging industry, providing an efficient and reliable solution for sealing and reinforcing corrugated boxes. Understanding its working principle and implementing proper maintenance methods are essential for ensuring optimal performance and prolonging the lifespan of the machine. In this article, we will delve into the working principle of this machine and explore maintenance methods to keep it in excellent working condition.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Working Principle of Corrugated Box Stitching Machine

The machine operates on a straightforward principle. The working process typically involves the following steps:

Box Alignment: The corrugated box is placed in the designated area of the machine. Proper alignment ensures accurate stitching and a secure seal.

Needle Movement: The machine's stitching head, equipped with multiple stitching needles, moves up and down rapidly. The needles penetrate through the layers of the corrugated box, creating the desired number of stitches.

Stitch Formation: As the stitching needles pierce through the layers, thread is fed through them, creating secure stitches that hold the box together. The machine's mechanism ensures uniform stitch length and proper tension for reliable sealing.

Stitch Completion: Once the desired number of stitches is formed, the machine's stitching head retracts, and the box is ready for further packaging processes or shipment.

Maintenance Methods

To ensure the longevity and consistent performance of the stitching machine, regular maintenance is crucial. Here are some key maintenance methods to consider:

Cleaning: Regularly clean the machine to remove dust, debris, and accumulated residue that may affect its performance. Use a soft brush or cloth to clean the surface, stitching head, and feed mechanism. Avoid using abrasive materials that could damage the machine.

Lubrication: Proper lubrication of the machine's moving parts is essential to minimize friction and ensure smooth operation. Refer to the manufacturer's guidelines for recommended lubrication intervals and use high-quality lubricants suitable for the machine's components.

Inspection: Regularly inspect the stitching needles, feed mechanism, and other key components for wear and tear. Replace any damaged or worn-out parts promptly to maintain optimal performance and prevent potential breakdowns.

Calibration: Periodically calibrate the machine to ensure accurate stitch formation and consistent stitch length. Refer to the machine's manual for instructions on calibration procedures or seek professional assistance if necessary.

Operator Training: Train operators on the proper usage and maintenance of the machine. Ensure they understand the correct operating procedures, safety guidelines, and the importance of regular maintenance. Proper training can minimize errors, prolong machine life, and ensure efficient and safe operation.

Conclusion

Understanding the working principle of the corrugated box stitching machine and implementing effective maintenance methods are essential for maximizing its performance and durability. By following the correct procedures for operation, cleaning, lubrication, inspection, and calibration, businesses can ensure the machine functions optimally, providing reliable sealing and reinforcing of corrugated boxes. Regular maintenance and operator training contribute to the longevity of the machine and enhance overall productivity in the packaging industry.

Kading, a professional sales team and a first-class mechanical engineer team provide you with satisfactory mechanical solutions.

Description Of Semi Auto Carton Box Stitching Machine

1. Japan's Mitsubishi imported double servo drive, accurate precision, less mechanical transmission parts, which can effectively reduce the failure rate of machinery.

2. Weilun touch screen operation, parameter (nail pitch, nail number, nail type, rear baffle) can be changed conveniently and quickly. The whole control system adopts Omron PLC control system.

3. The rear electric baffle is driven by a stepping motor, the size is accurate, and the size change is more convenient and quick.

4. All the contactors in the control box adopt the Japanese Mitsubishi brand

5. The photoelectric and contact switches adopt Omron brand.

6. Bottom mold and blade are made of Japanese tungsten steel (wear-resistant).

7. The whole set of nail heads are all made of special steel, and precision machined by computer numerical control.

8. It can be nailed with single nails, double nails, and reinforced nails (two ends are double nails, and the middle part is single nails) at one time, which can meet the different requirements of different customers for different types of nails.

9. It only takes one minute to change the carton size and adjust the carton nail distance, which greatly saves time and is easy to operate.

10. Cartons with lids and without lids can be nailed (with or without lids, if you want to order, you must explain it when ordering enough machinery).

11. The paper feeding part at the front end counts automatically, and the paper feeding table is equipped with a photoelectric sensor device, which automatically rises when feeding paper.

12. The back section has an automatic counting function, and the number of completed finished products can be stacked and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packaging and binding.

Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located

in Dongguang County, Cangzhou City, Hebei Province.

We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,

2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team

composed of a group of young people with forward thinking, we can make a professional product plan for you

according to your product needs.

Our company's self-produced product lines include carton printing machines, carton die-cutting machines,

and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer

machines, Flute laminating machines, Single facer machines, etc.

If some related products you need are not produced by ourselves, with our mature product supply chain

system, we will also help you purchase products that satisfy you with the most competitive price and the

most guaranteed quality as the standard.

In addition to our own foreign trade business, our factory also cooperates with many trading companies,

so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and

the European Union, and are well received by the majority.

There are also many brand&branded manufacturers among our customers, these factories are very relieved

to entrust the production of some products to us, which is enough to show that our quality and production

conditions are trustworthy.

Cooperate with us, benefit together!

Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
