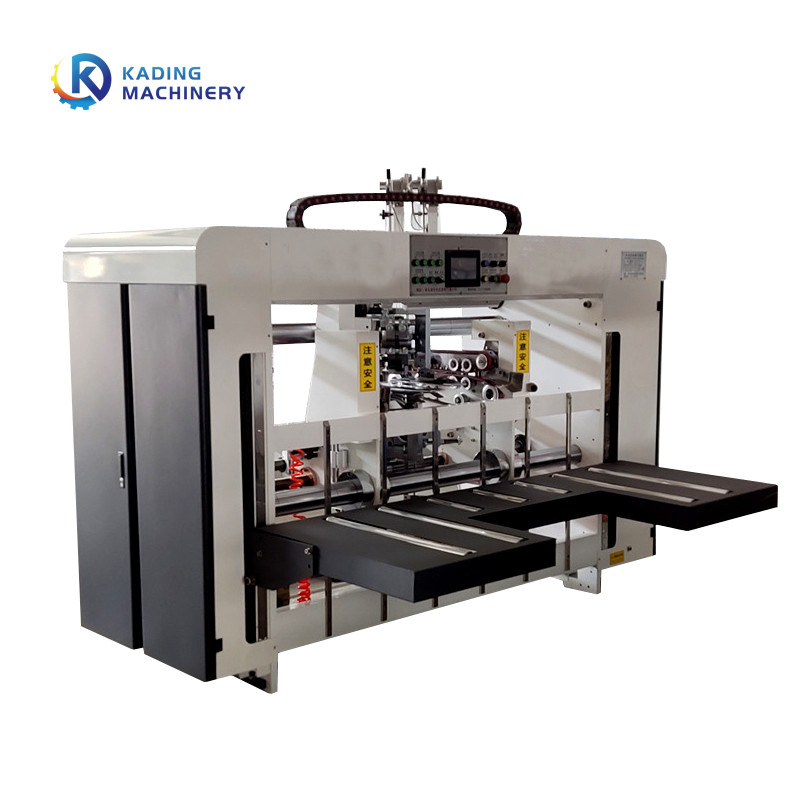

1 To 99 Nails Corrugated Box Stitching Machine With Servo Motor Computer System For Food Packing
The corrugated box stitching machine has revolutionized the packaging industry, offering an efficient and reliable solution for sealing and reinforcing corrugated boxes. With its space-saving design and user-friendly usage method, this machine has become an invaluable asset in streamlining packaging operations. In this article, we will explore the significance of the floor area requirements and the straightforward usage method of these stitching machines.
Specification
| Max size(A+B)X2 |
3800mm |
Min length A |
250mm |
| Min size(A+B)X2 |
740mm |
Max height D |
2000mm |
| Max size(C+D+C) |
2760mm |
Min height D |
150mm |
| Min size(C+D+C) |
250mm |
Max tongue width E |
40mm |
| Min rock cover C |
50mm |
Max feeding height |
900mm |
| Max rock cover C |
380mm |
Machine width |
2850mm |
| Max width B |
760mm |
Machine weight |
2Ton |
| Min width B |
120mm |
Speed(nail/min) |
800 |
| Max length A |
1140mm |
Nail number |
1-99 |
*Machine's specification is subject to the final confirmation of seller and buyer.
Floor Area
One of the key advantages of these stitching machine is its compact design, which optimizes the utilization of floor space. The machine requires minimal floor area, making it suitable for various production environments, from small-scale operations to large manufacturing facilities. Its small footprint allows businesses to maximize their workspace and layout efficiency, ensuring smooth material flow and improving overall productivity.
Usage Method
The stitching machine is designed to be user-friendly, allowing operators to utilize its functionalities with ease. The usage method typically involves the following steps:
Preparation: Before operation, ensure that the machine is correctly set up and adjusted according to the specifications of the corrugated boxes. This may involve selecting the appropriate stitching parameters, such as stitch length and quantity, to meet the specific packaging requirements.
Box Placement: Position the corrugated box or boxes to be stitched in the designated area on the machine's platform. Ensure that the boxes are aligned properly and securely in place, ready for stitching.
Activation: Engage the machine's control panel or foot pedal to activate the stitching process. The machine's stitching heads or needles will swiftly pierce through the layers of the corrugated box, creating secure and reliable stitches.
Completion: Once the stitching process is complete, remove the stitched corrugated boxes from the machine's platform. Ensure that the stitches are intact and that the boxes are securely sealed. The boxes are now ready for further packaging or shipping processes.
Conclusion
The corrugated box stitching machine's optimized floor area requirements and user-friendly usage method contribute to its effectiveness and efficiency in the packaging industry. Its compact design allows for space optimization, making it a suitable choice for businesses of varying sizes. The straightforward usage method simplifies the stitching process, allowing operators to achieve secure and reliable stitches with ease. With its ability to streamline packaging operations, the stitching machine has become an indispensable tool for businesses seeking to enhance productivity and ensure the integrity of their packaging.
Kading carton manufacturer, continue to escort your good purchasing experience.

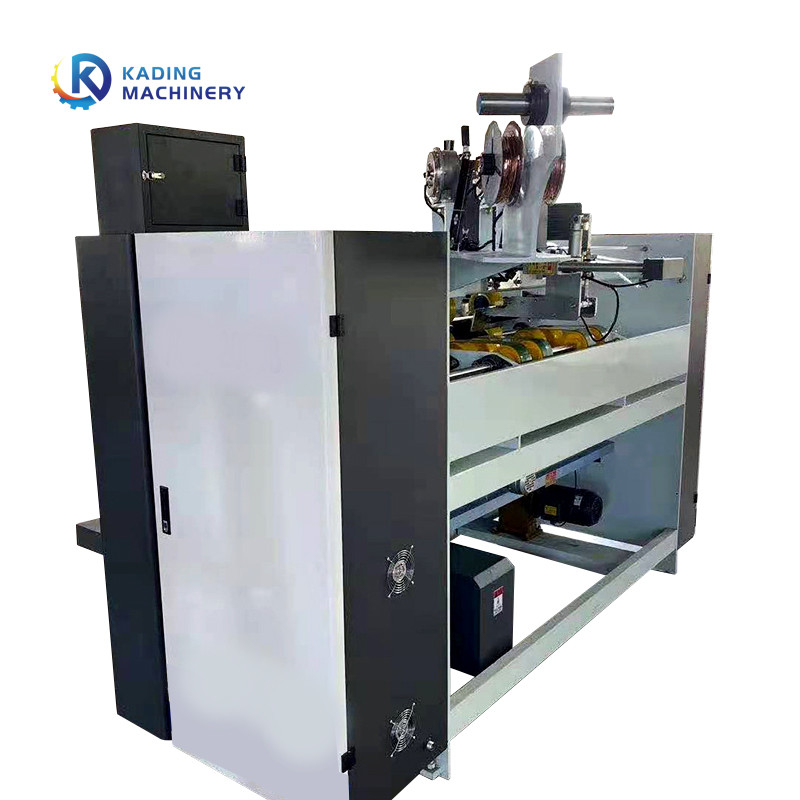

Description Of Semi Auto Carton Box Stitching Machine
1. Japan's Mitsubishi imported double servo drive, accurate precision, less mechanical transmission parts, which can effectively reduce the failure rate of machinery.
2. Weilun touch screen operation, parameter (nail pitch, nail number, nail type, rear baffle) can be changed conveniently and quickly. The whole control system adopts Omron PLC control system.
3. The rear electric baffle is driven by a stepping motor, the size is accurate, and the size change is more convenient and quick.
4. All the contactors in the control box adopt the Japanese Mitsubishi brand
5. The photoelectric and contact switches adopt Omron brand.
6. Bottom mold and blade are made of Japanese tungsten steel (wear-resistant).
7. The whole set of nail heads are all made of special steel, and precision machined by computer numerical control.
8. It can be nailed with single nails, double nails, and reinforced nails (two ends are double nails, and the middle part is single nails) at one time, which can meet the different requirements of different customers for different types of nails.
9. It only takes one minute to change the carton size and adjust the carton nail distance, which greatly saves time and is easy to operate.
10. Cartons with lids and without lids can be nailed (with or without lids, if you want to order, you must explain it when ordering enough machinery).
11. The paper feeding part at the front end counts automatically, and the paper feeding table is equipped with a photoelectric sensor device, which automatically rises when feeding paper.
12. The back section has an automatic counting function, and the number of completed finished products can be stacked and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packaging and binding.
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
