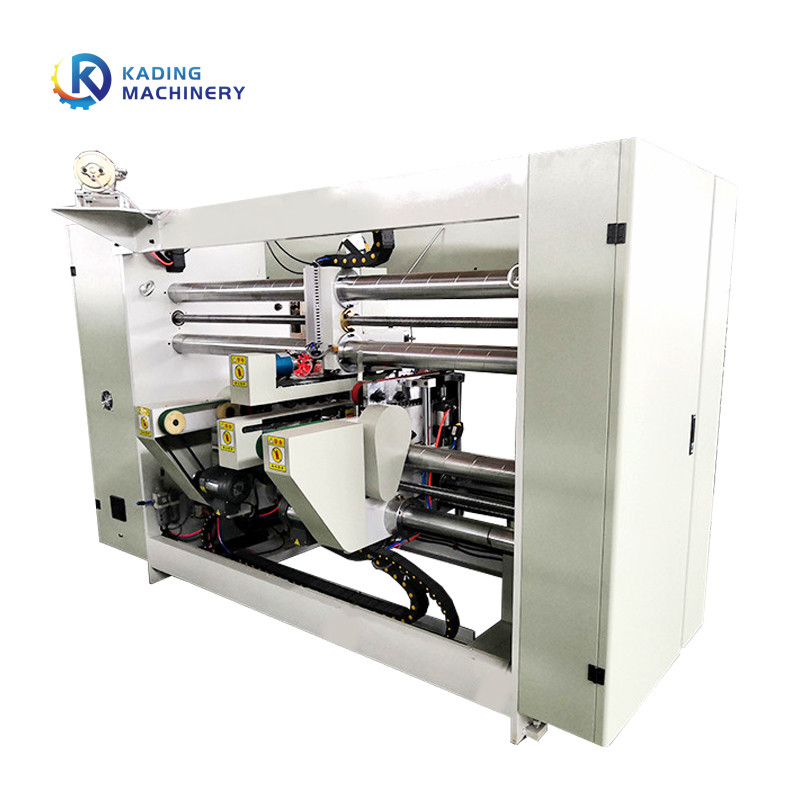

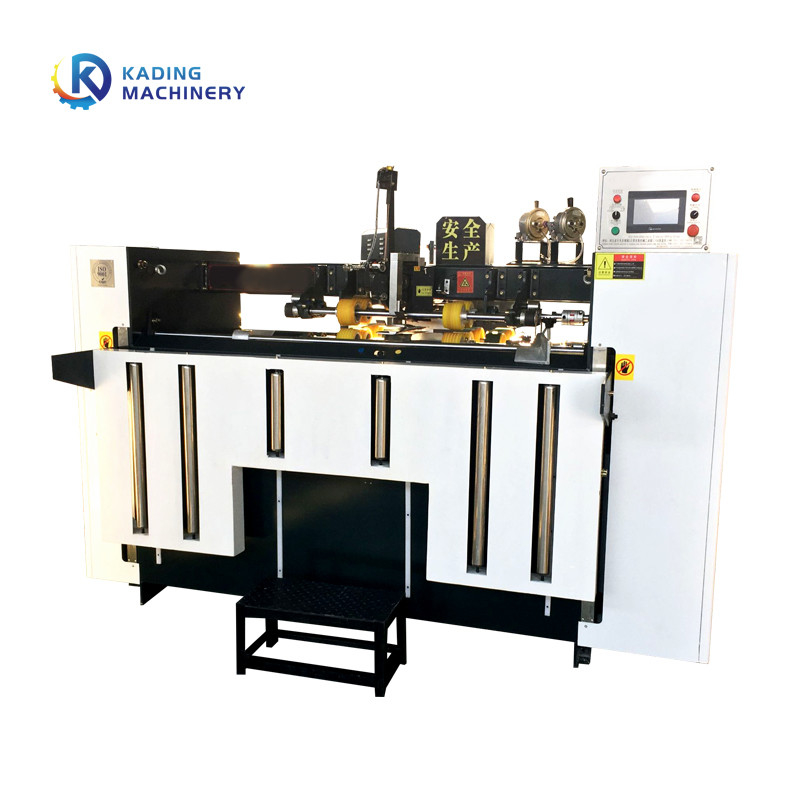

600nails / Min Corrugated Box Stitching Machine For Cardboard Box With PLC Touch Screen
In the fast-paced world of packaging, efficiency is key to meeting customer demands and staying competitive. A semi-automatic corrugated box stitching machine offers a balance between automation and manual operation, providing numerous benefits for packaging operations. This article explores how a semi-automatic corrugated box stitching machine can enhance efficiency in your production processes.
Specification
| Max size(A+B)X2 |
3800mm |
Min length A |
250mm |
| Min size(A+B)X2 |
740mm |
Max height D |
2000mm |
| Max size(C+D+C) |
2760mm |
Min height D |
150mm |
| Min size(C+D+C) |
250mm |
Max tongue width E |
40mm |
| Min rock cover C |
50mm |
Max feeding height |
900mm |
| Max rock cover C |
380mm |
Machine width |
2850mm |
| Max width B |
760mm |
Machine weight |
2Ton |
| Min width B |
120mm |
Speed(nail/min) |
800 |
| Max length A |
1140mm |
Nail number |
1-99 |
*Machine's specification is subject to the final confirmation of seller and buyer.
Streamlined Operation
Unlike fully automatic machines, semi-automatic corrugated box stitching machines require operator input during certain stages of the stitching process. However, they still offer significant automation features that streamline operation and improve efficiency. These machines automate staple insertion and clinching processes, minimizing manual effort and increasing stitching speed. Operators can quickly load boxes, trigger the stitching process, and move onto the next box, maximizing productivity.
Versatile Box Sizes and Styles
Semi-automatic corrugated box stitching machines are designed to handle a wide range of box sizes and styles. Whether you're stitching regular slotted containers (RSCs), half-slotted containers (HSCs), or custom-sized boxes, a semi-automatic machine can adapt to your requirements. Adjustable stitching head positions and stitch distances allow for flexibility in accommodating various box dimensions, ensuring versatility in your production line.
Efficient Changeovers
Changeover time between different box sizes or styles can impact productivity. Semi-automatic corrugated box stitching machines offer efficient changeover capabilities, allowing operators to make adjustments swiftly. With intuitive controls and easy-to-use settings, operators can reconfigure the machine for different box specifications in a matter of minutes. This minimizes downtime and enables faster transitions between production runs, enhancing overall efficiency.
Enhanced Quality Control
Maintaining stitching quality is crucial to ensure box integrity and protect the products within. Semi-automatic corrugated box stitching machines provide enhanced quality control through operator involvement. Operators can visually inspect each stitched box, ensuring that staples are properly inserted, clinched, and aligned. Any potential issues or defects can be identified and addressed immediately, preventing the production of faulty boxes and reducing waste.
Cost-Effective Solution
Investing in a semi-automatic corrugated box stitching machine offers a cost-effective solution for packaging operations. These machines typically have a lower upfront cost compared to fully automatic counterparts while still providing significant efficiency gains. They require fewer maintenance and servicing requirements, leading to reduced operational costs in the long run. Moreover, the increased productivity and improved quality control contribute to overall cost savings and customer satisfaction.
A semi-automatic corrugated box stitching machine combines the benefits of automation with operator involvement, providing a streamlined and efficient stitching process. The versatility, efficient changeovers, enhanced quality control, and cost-effectiveness make it an ideal choice for packaging operations. By investing in a semi-automatic machine, you can enhance efficiency, increase productivity, and meet the evolving demands of the packaging industry.
Kading Carton Machinery is a professional carton box stitching manufacturer with 14 years production experience, we have nice quality of presales service and after sale service, please feel free to cooperate with us~!
Description Of Semi Auto Stitching Machine
1. Japan's Mitsubishi imported double servo drive, accurate precision, less mechanical transmission parts, which can effectively reduce the failure rate of machinery.
2. Weilun touch screen operation, parameter (nail pitch, nail number, nail type, rear baffle) can be changed conveniently and quickly. The whole control system adopts Omron PLC control system.
3. The rear electric baffle is driven by a stepping motor, the size is accurate, and the size change is more convenient and quick.
4. All the contactors in the control box adopt the Japanese Mitsubishi brand
5. The photoelectric and contact switches adopt Omron brand.
6. Bottom mold and blade are made of Japanese tungsten steel (wear-resistant).
7. The whole set of nail heads are all made of special steel, and precision machined by computer numerical control.
8. It can be nailed with single nails, double nails, and reinforced nails (two ends are double nails, and the middle part is single nails) at one time, which can meet the different requirements of different customers for different types of nails.
9. It only takes one minute to change the carton size and adjust the carton nail distance, which greatly saves time and is easy to operate.
10. Cartons with lids and without lids can be nailed (with or without lids, if you want to order, you must explain it when ordering enough machinery).
11. The paper feeding part at the front end counts automatically, and the paper feeding table is equipped with a photoelectric sensor device, which automatically rises when feeding paper.
12. The back section has an automatic counting function, and the number of completed finished products can be stacked and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packaging and binding.
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
