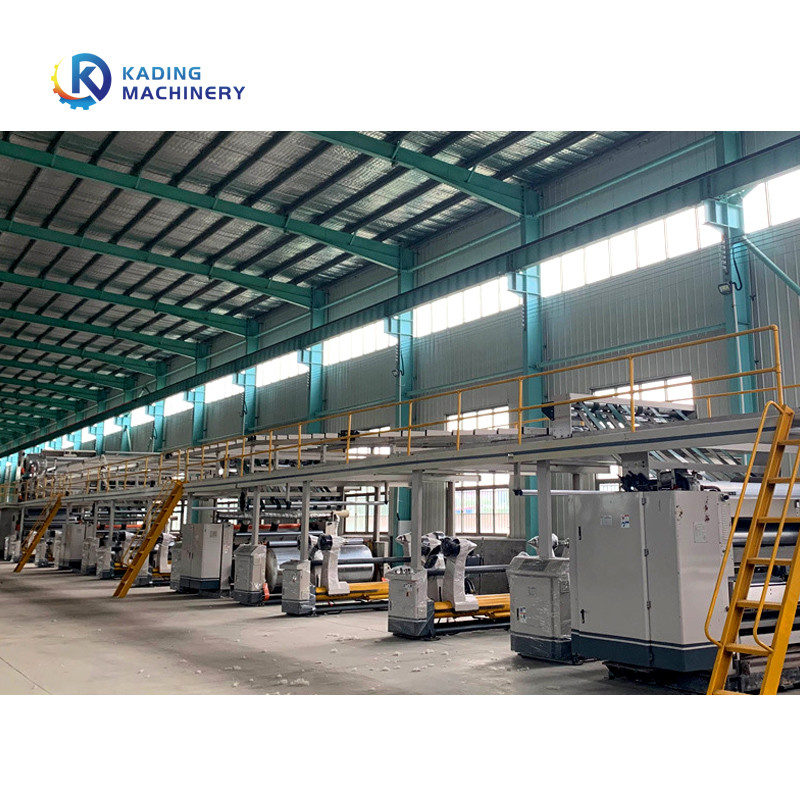

3 Layers Corrugation Line With Liner Pre Heater And Single Facer Machine

3 Layers Corrugated Board Making Machine With Liner Pre Heater And Single Facer Machine

According to the corrugated cardboard production process, the corrugation production line consists of two relatively independent wet end equipment and dry part.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

The Wet End Equipment Mainly Includes
Raw paper support frame, automatic splicing machine, preheating and pre-adjustment, single-sided corrugating machine, paper feeding bridge, gluing machine, double-sided machine, etc., the wet end equipment will corrugate the base paper from different flutes cardboard; cadre equipment mainly includes rotary cutting machine, longitudinal cutting and creasing machine, horizontal cutting machine, stacker and so on.
Corrugated cardboard making machine is the key equipment for corrugated box manufacturers. Corrugated box companies are facing increasingly fierce market competition.
User orders with multiple specifications, small quantities, and fast delivery must improve the automation of the corrugation production line, improve the production management level of the this line, and improve quality, improve efficiency, save energy, save manpower, reduce supply, reduce waste, cadre equipment is the key to achieve this goal, including corrugated cadres.
The cadres of the old production line equipment of the carton enterprises should be fully upgraded, and the new production lines should be equipped with automatic cadre equipment and production management systems.

Working Principle
Corrugated board making machine is the abbreviation of corrugated cardboard production line. It is a stream formed by the process of corrugating, gluing, gluing, paper separating line, cutting into standard boards, and final output waterline.

For example, a single-sided corrugated paper production line usually consists of a web support, a single-sided corrugated board forming machine and a rotary cutting machine, using web materials and potatoes and corn starch adhesive, continuous production, cut into single-sided corrugated cardboard of required specifications, cardboard production does not need to be dried, and used at the same time with glue machine or laminating machine, it corrugated cardboard with more than three layers can be produced.

Structure

Wet End Equipment Configuration
Wet end equipment is the key equipment for corrugated paper forming in corrugated paper production line. It mainly involves the influence of paper, glue, steam and other factors on the quality of paper forming.
The key equipment of the first single-end corrugating machine should be the equipment with advanced technology and card type single-end corrugating machine. The numerical display of the adjustable gap and the control of the glue amount are very
important.

Cadre Equipment Configuration
In the cadre equipment, the longitudinal cloth shearing machine is the equipment that affects the production efficiency, its selection is very important, the knife should be movable, and the dustproof treatment of the knife Taiwan ceramic tiles should be considered for the guide rail, because in actual use, the grinding knife will fall on the smooth guide rail, which will cause the tool or roller to stop frequently when moving the hard arranging knife.
The minimum spacing between wire rollers should ensure the actual value of the positioning method and accuracy at 50mm.

Production Management System
In addition to monitoring the production site, the production management system should also have complete production data collection, statistics and printout.
