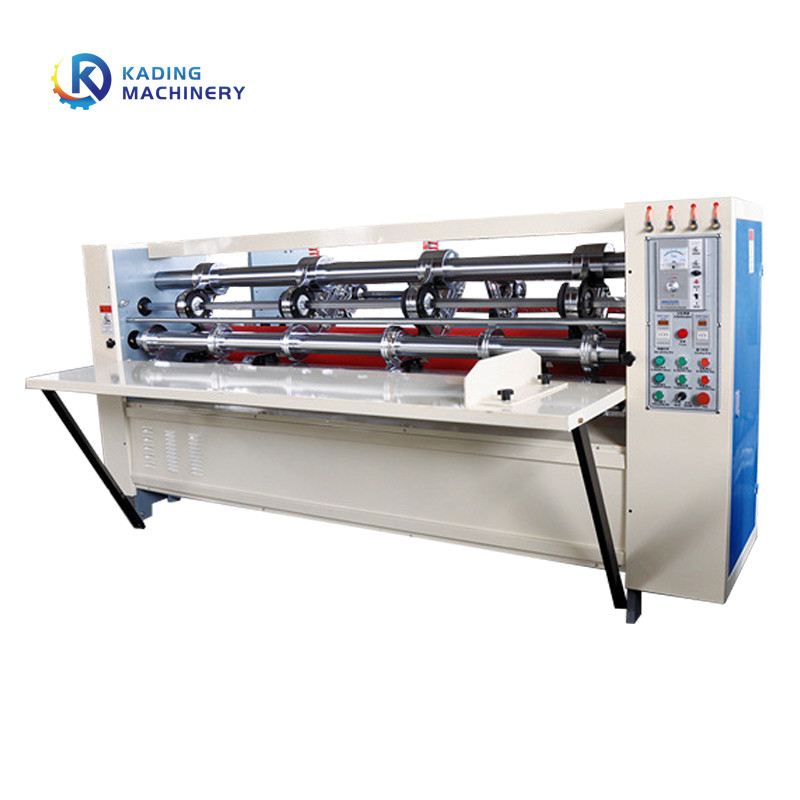

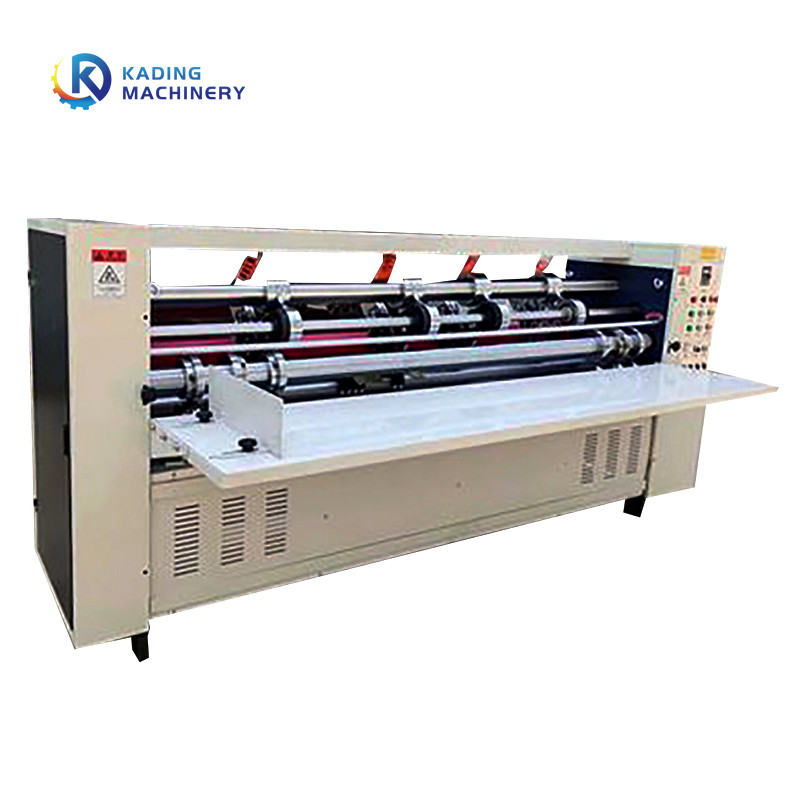

Automatic Slitter Scorer Machine With Electric Setting And PLC Equipped

Automatic Slitter Scorer Machine With Electric Setting And PLC Equipped

Corrugated carton thin blade slitters are essential machines in the packaging industry, specifically designed for precise and efficient cutting of corrugated carton sheets. Understanding the theoretical design, structure, and common problems associated with these slitters is crucial for manufacturers seeking to optimize their cutting processes. In this article, we will explore the theoretical design principles behind these blade slitters, discuss their structure, and highlight some common problems that may arise during operation.

Slitter Scorer Machine Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Theoretical Design of Slitter Scorer Machine

They are designed based on several theoretical principles to ensure optimal cutting performance:

Blade Geometry: The blades used in the slitter are designed with a specific geometry to achieve clean and precise cuts. The angle and shape of the blades are carefully calculated to reduce friction, minimize dust, and prevent tearing or crushing of the corrugated carton sheets.

Blade Material Selection: High-quality, durable materials are chosen for the blades to withstand the cutting forces and ensure long-lasting performance. Common blade materials include high-speed steel (HSS) or tungsten carbide, which offer excellent cutting efficiency and longevity.

Cutting Mechanism: The cutting mechanism is designed to provide a smooth and controlled cutting action. It typically involves the movement of the blade against a stationary surface or the rotation of the blade around a fixed axis. This mechanism ensures precise and consistent cutting of the corrugated carton sheets.

Structure of Slitter Scorer Machine

these blade slitters generally consist of the following components:

Blade Holder: The blade holder securely holds the cutting blades in place and allows for easy adjustment and replacement. It ensures precise alignment and stability during cutting operations.

Feed System: The feed system is responsible for advancing the corrugated carton sheets towards the blades. It ensures a continuous and controlled feeding process, enabling efficient and accurate cutting.

Control Panel: The control panel houses the necessary controls and settings to operate the slitter. It allows operators to adjust cutting parameters, such as blade speed, feed rate, and blade pressure, for optimal cutting performance.

Common Problems of Slitter Scorer Machine

While these slitters are reliable machines, some common problems may arise:

Blade Dullness: Over time, the cutting blades may become dull, resulting in less efficient cutting and an increase in waste or damaged sheets. Regular blade maintenance and sharpening are necessary to maintain optimal cutting performance.

Misalignment: Improper blade alignment can lead to uneven cutting, tearing, or improper sheet dimensions. Regular inspections and adjustments of the blade holder and feed system are essential to ensure precise alignment.

Blade Chipping or Breakage: Excessive forces or improper handling may cause blade chipping or breakage. Careful operation and proper maintenance can help prevent these issues.

Thin blade slitters are designed based on theoretical principles to achieve precise and efficient cutting of corrugated carton sheets. The blade geometry, material selection, and cutting mechanism are carefully considered to ensure optimal performance. The structure of these slitters includes a blade holder, feed system, and control panel, facilitating smooth and controlled cutting operations. While common problems such as blade dullness, misalignment, and blade chipping or breakage may occur, regular maintenance and proper operation can minimize these issues. By understanding the theoretical design, structure, and common problems associated with them, manufacturers can optimize their cutting processes and achieve high-quality results.

Choose Kading to provide you with the best machine purchase plan.

Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located

in Dongguang County, Cangzhou City, Hebei Province.

We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,

2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team

composed of a group of young people with forward thinking, we can make a professional product plan for you

according to your product needs.

Our company's self-produced product lines include carton printing machines, carton die-cutting machines,

and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer

machines, Flute laminating machines, Single facer machines, etc.

If some related products you need are not produced by ourselves, with our mature product supply chain

system, we will also help you purchase products that satisfy you with the most competitive price and the

most guaranteed quality as the standard.

In addition to our own foreign trade business, our factory also cooperates with many trading companies,

so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and

the European Union, and are well received by the majority.

There are also many brand&branded manufacturers among our customers, these factories are very relieved

to entrust the production of some products to us, which is enough to show that our quality and production

conditions are trustworthy.

Cooperate with us, benefit together!

Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
