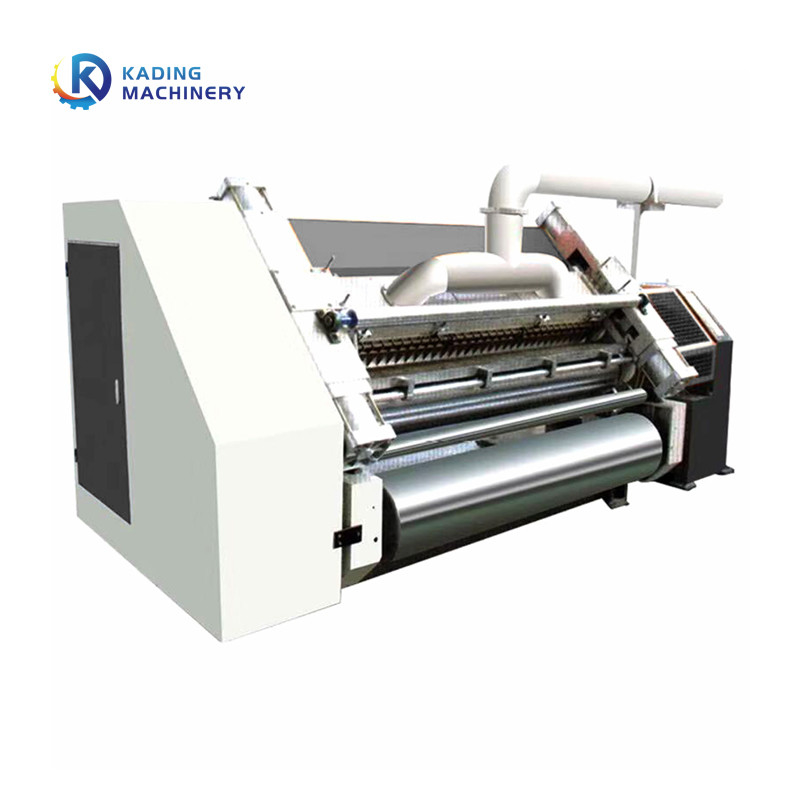

B Flute Corrugated Single Facer 1400 2200mm Working Width Steam Heating

B Flute Single Facer 1200 2500mm Working Width Steam Heating

The B Flute Single Facer 1200 2500mm Working Width Steam Heating is a revolutionary tool that will transform the corrugated sector. This single facer corrugated machine's sophisticated features provide unrivalled performance and efficiency in the manufacturing of B flute corrugated boards. Let's look at some of its important features:

Single Facer Machine Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

High-precision Performance:
The B Flute Single Facer Machine 1200 2500mm Working Width Steam Heating showcases exceptional precision in corrugation. Equipped with state-of-the-art technology, it ensures accurate and uniform flute formation, resulting in superior quality B flute boards. The machine boasts a wide working width range of 1200 2500mm, enabling flexibility in meeting various production requirements. Whether you're manufacturing packaging boxes or display materials, this single facer corrugated machine guarantees excellent output with consistent performance.

Efficient Steam Heating System:
One of the standout features of this machine is its steam heating system. By utilizing steam as a heat source, it provides rapid and uniform heating, ensuring optimal temperature control during the corrugation process. The steam heating mechanism minimizes energy consumption, resulting in cost-effective production while maintaining high-quality board formation. This eco-friendly solution not only improves operational efficiency but also reduces environmental impact, making it a sustainable choice for corrugated manufacturers.

User-friendly Design:
The B Flute Single Facer 1200 2500mm Working Width Steam Heating incorporates a user-friendly design, prioritizing convenience and ease of operation. The intuitive control panel allows operators to effortlessly monitor and adjust key parameters, such as steam pressure, temperature, and production speed. Additionally, the machine is equipped with safety features to ensure operator well-being during operation. Its robust construction guarantees durability and longevity, minimizing downtime and maintenance costs, thereby maximizing productivity.

In summary, the B Flute Single Facer 1200 2500mm Working Width Steam Heating stands as a cutting-edge solution in the field of corrugated board production. With its high-precision performance, efficient steam heating system, and user-friendly design, this single facer corrugated machine elevates the manufacturing process to new heights. Experience the revolution in B flute board production with this advanced and versatile machine, delivering outstanding results for packaging and display applications.

Single Facer Machine Descriptions

The corrugated 48CRMO alloy steel is used, and the surface hardness of the heat treatment is above HV1200.

The corrugated roller module is separated from the entire machine, which can be replaced by the overall lifting and replace the ascent type at any time.

The adhesive and fixed paste are designed as a group guide track and disassembling to shorten the maintenance time.

The main transmission of the frequency conversion motor, the independent driver box, and the three -axis transmission, which controls the acceleration of the corrugated machine by the inverter, and achieves a communication interface to achieve energy -saving effects in the future.

Both the corrugation roller and pressure roller bearing are high -temperature lubricating fat to ensure long bearings and smooth operation.

The closed gear transmission oil is soaked, the noise is small, the operation is stable, and the life of the gear is long.

The host is suspended, and the glue area is rotated to avoid drying the roller surface.

Configure the spray device to adjust the humidity of the original paper at will.

The corrugated roller is made of special alloy steel of 48CRMO alloy steel, and the hardness is HRC58 ° -60 °

Oil lubricating gear box, low noise and universal transmission, and also separate power. Main motor conversion control (optional).

The vacuum suction system can provide a perfect flute shape even at high speeds, and the explosive volume controller is equipped.

The bearings of corrugated rollers and pressure rollers are lubricated by high temperature lubricating oil.

The surface of the bonding roller is carved and chrome -plated by special mesh patterns. Automatic and periodic glue of glue unit.
