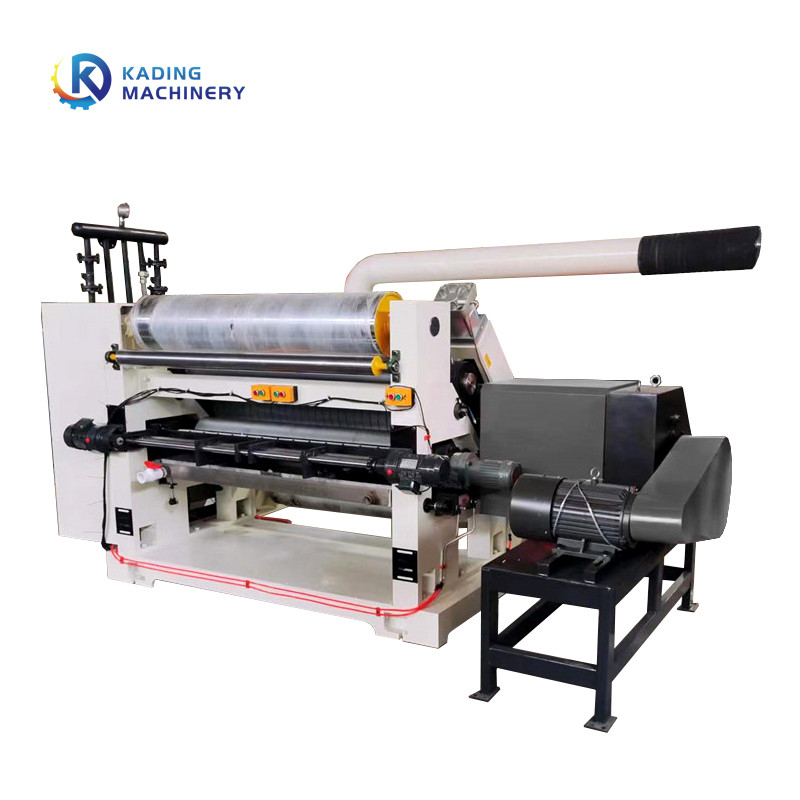

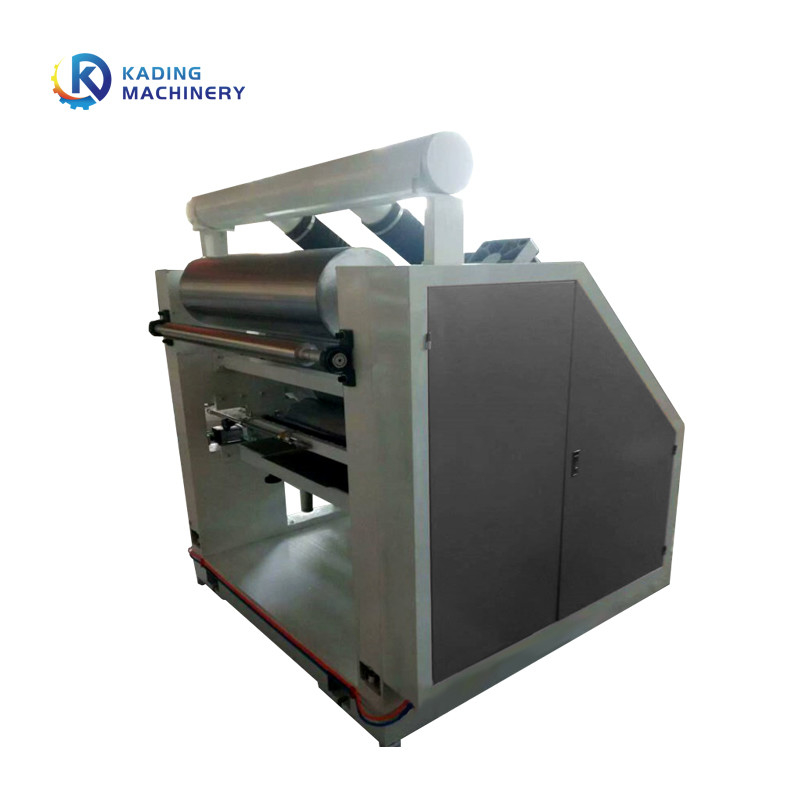

Fingerless Single Facer Corrugated Machine For 2 Ply Paper With Universal Joint

Fingerless Single Facer Corrugated Machine For 2 Ply Paper With Universal Joint

The Single Facer Corrugated Machine is a vital piece of equipment used in the production of corrugated cardboard. It is specifically designed to convert paperboard into fluted corrugated sheets, which are widely used in packaging applications. This machine plays a crucial role in the corrugated board manufacturing process, providing the initial step in creating sturdy and versatile packaging material.

Single Facer Machine Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

The Single Facer Corrugated Machine consists of several key components, including a roll stand, preheater, single facer unit, and a gluing unit.

The roll stand holds and feeds the paperboard into the machine, while the preheater warms it up to enhance the bonding process. The single facer unit is the core component that creates the corrugated profile on the paperboard, utilizing a set of corrugating rolls.

Finally, the gluing unit applies adhesive to the fluted side of the corrugated sheet to prepare it for lamination with liner sheets.

This machine offers various advantages, such as high production efficiency, precise corrugating control, and the ability to produce corrugated sheets of different flute sizes and thicknesses.

It plays a significant role in meeting the diverse packaging requirements of industries such as e-commerce, food and beverage, and consumer goods.

Different Types of Single Facer
Single Facer Corrugated Machines are available in different types to cater to varying production needs and output capacities. Here are some common types:

Cassette Single Facer: This type of machine features interchangeable cassettes that can be easily replaced to switch between different flute profiles. It offers flexibility and quick changeovers, making it suitable for environments where frequent product changes are required.

Fingerless Single Facer: In a fingerless single facer, the corrugating rolls do not have finger-like projections. This design eliminates the need for preheating and reduces the risk of crushed flutes. Fingerless single facers are known for their high-speed production capabilities and are often preferred for large-scale corrugated board manufacturing.

Vacuum Single Facer: Vacuum single facers use a vacuum suction system to hold the paperboard in place during the corrugating process. This ensures better control and alignment of the paperboard, resulting in improved corrugated sheet quality. Vacuum single facers are suitable for producing high-quality packaging materials with precise flute profiles.

Technical Parameters of Single Facer Corrugated Machine
When evaluating a Single Facer Corrugated Machine, several technical parameters are crucial to consider. Here are some key parameters to look for:

Working Width: The working width refers to the maximum width of the corrugated sheet that the machine can produce. It determines the size of packaging materials that can be manufactured using the machine.

Flute Profiles: Different machines offer various flute profiles, such as A, B, C, E, and F. The choice of flute profile depends on the specific packaging requirements, including factors like strength, cushioning, and printability.

Heating System: The heating system is responsible for preheating the paperboard before corrugation. Efficient heating systems ensure uniform heat distribution and optimal bonding between the liner and fluting medium.

Production Speed: The production speed denotes the number of corrugated sheets the machine can produce per unit of time. It determines the overall production capacity and efficiency of the machine.

Gluing System: The gluing system applies adhesive to the corrugated sheet. Look for machines with precise and adjustable gluing systems to ensure consistent and reliable adhesive application.

Control System: A reliable control system with user-friendly interfaces and automation features enhances operational efficiency

Single Facer Machine Descriptions

The corrugated 48CRMO alloy steel is used, and the surface hardness of the heat treatment is above HV1200.

The corrugated roller module is separated from the entire machine, which can be replaced by the overall lifting and replace the ascent type at any time.

The adhesive and fixed paste are designed as a group guide track and disassembling to shorten the maintenance time.

The main transmission of the frequency conversion motor, the independent driver box, and the three -axis transmission, which controls the acceleration of the corrugated machine by the inverter, and achieves a communication interface to achieve energy -saving effects in the future.

Both the corrugation roller and pressure roller bearing are high -temperature lubricating fat to ensure long bearings and smooth operation.

The closed gear transmission oil is soaked, the noise is small, the operation is stable, and the life of the gear is long.

The host is suspended, and the glue area is rotated to avoid drying the roller surface.

Configure the spray device to adjust the humidity of the original paper at will.

The corrugated roller is made of special alloy steel of 48CRMO alloy steel, and the hardness is HRC58 ° -60 °

Oil lubricating gear box, low noise and universal transmission, and also separate power. Main motor conversion control (optional).

The vacuum suction system can provide a perfect flute shape even at high speeds, and the explosive volume controller is equipped.

The bearings of corrugated rollers and pressure rollers are lubricated by high temperature lubricating oil.

The surface of the bonding roller is carved and chrome -plated by special mesh patterns. Automatic and periodic glue of glue unit.

Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located

in Dongguang County, Cangzhou City, Hebei Province.

We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,

2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team

composed of a group of young people with forward thinking, we can make a professional product plan for you

according to your product needs.

Our company's self-produced product lines include carton printing machines, carton die-cutting machines,

and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer

machines, Flute laminating machines, Single facer machines, etc.

If some related products you need are not produced by ourselves, with our mature product supply chain

system, we will also help you purchase products that satisfy you with the most competitive price and the

most guaranteed quality as the standard.

In addition to our own foreign trade business, our factory also cooperates with many trading companies,

so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and

the European Union, and are well received by the majority.

There are also many brand&branded manufacturers among our customers, these factories are very relieved

to entrust the production of some products to us, which is enough to show that our quality and production

conditions are trustworthy.

Cooperate with us, benefit together!

Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!

We can also have video call if you’d like an online factory tour.

Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;

3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.

Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

Q: How many languages does your machine support?
A: Our machine supports all the languages.

Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual

banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes

around 35-50 days to produce.

Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
