Servo Independently Driven Rotary Die Cutting Machine For Corrugate Boxes

Servo Indepedently Driven Carton Box Die Cutting Machine With Control Screen Display And Electrical Adjustment

The Carton Box Die Cutting Machine is a cutting-edge solution that revolutionizes the carton box production process. With its advanced technology and versatile capabilities, this machine offers numerous advantages to businesses worldwide. In this article, we will explore the product theory and application, service, popular countries.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Theory and Application:

The Carton Box Die Cutting Machine operates on the principle of die cutting, which involves cutting carton boards into specific shapes using sharp dies. This technology finds extensive application in industries worldwide, including food and beverage packaging, electronics, cosmetics, and more. The machine enables precise cutting of carton boxes, facilitating efficient packaging, branding, and product differentiation.

Service:

When investing in the Carton Box Die Cutting Machine, reliable service is essential. Reputable manufacturers offer comprehensive after-sales support, including installation, training, and maintenance services. This ensures the machine is set up correctly, operators are trained, and any issues are promptly addressed. Reliable service enhances machine performance and minimizes downtime, resulting in smooth operations for businesses.

Popular Countries:

The Carton Box Die Cutting Machine is popular in countries such as China, the United States, Germany, and Japan. These countries are known for their advanced manufacturing industries and high demand for efficient packaging solutions. The popularity of this machine in these countries can be attributed to its ability to meet the stringent quality requirements and production needs of these markets.

Rotart Die Cutting Machine Details

Lead Edge Feeding Unit

1.Lead edge feeder with vacuum transfer;

2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly

and vibrate less;

3.The paper feeding table is steel material. The wall is strong and durable;

4.Automatically count the production quantities. touch screen display;

5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;

transport, customers can choose to continue or skip delivery

6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control

switch, as to realize the emergency stop, stop or restore the paper feeding.

REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.

SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.

FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is

wear-resistant and smooth.

ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.

DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the

clarity of the printing, and reduce paper waste.

Printing Unit

VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure

accurate to avoid the paste version problems.

INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing

plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.

PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.

PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.

Slotting Unit

CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,

which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.

Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.

OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.

SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment

and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.

CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.

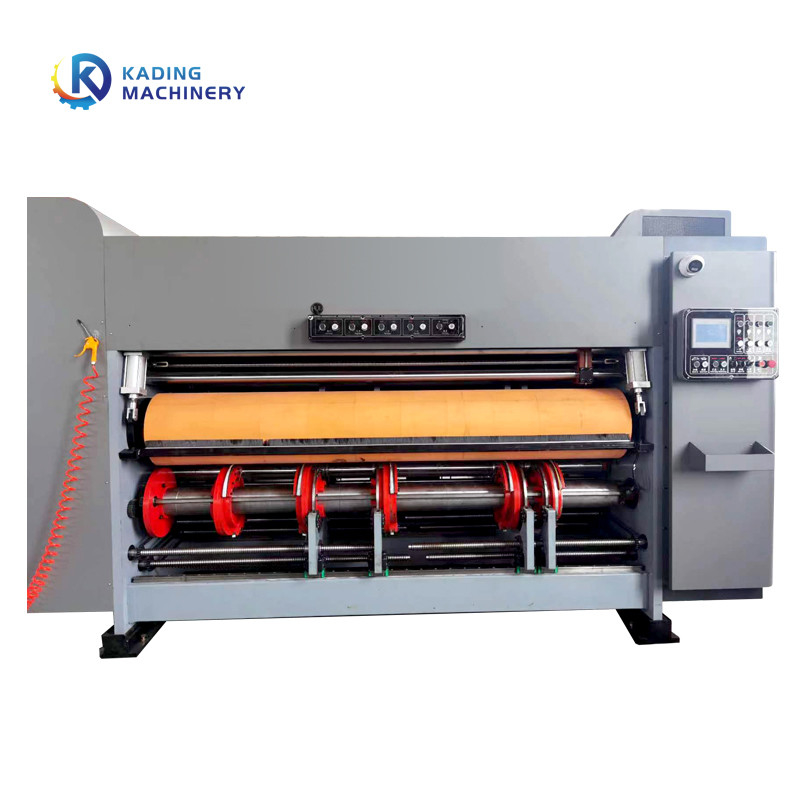

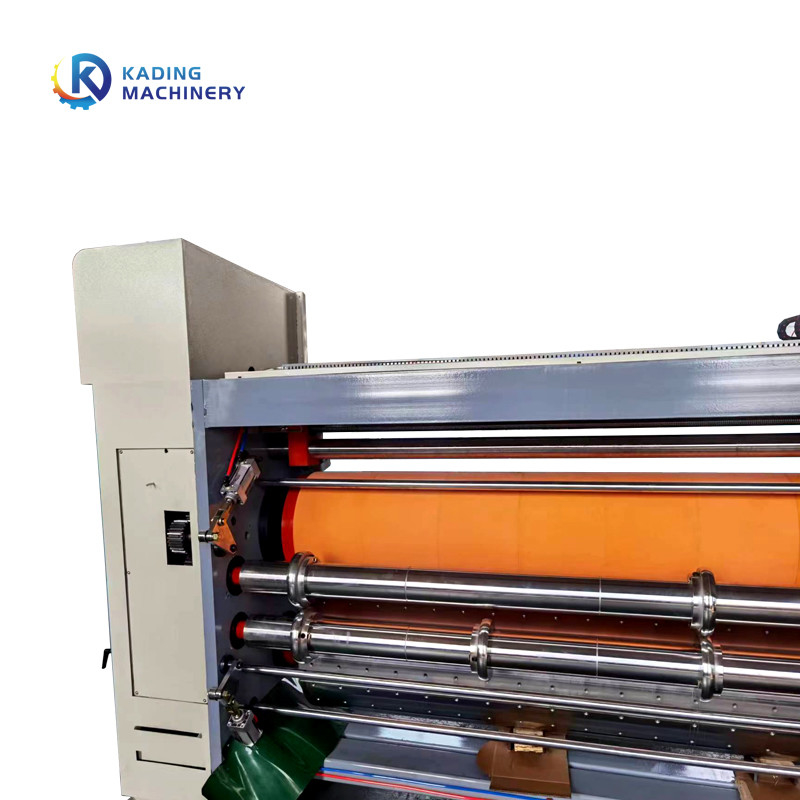

Die Cutting Unit

OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.

PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial

direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

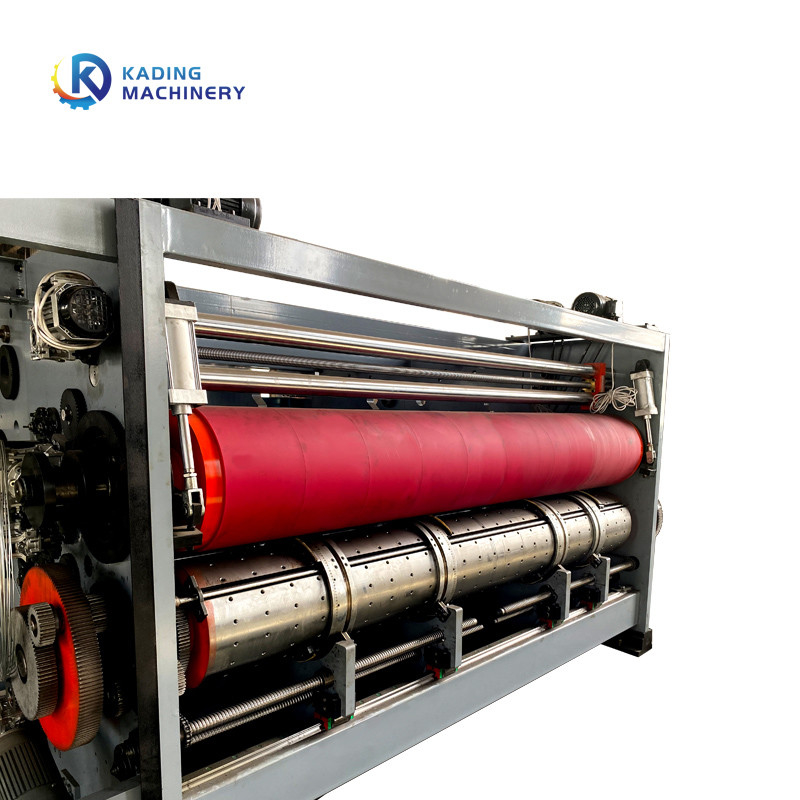

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried

out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation

range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and

negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the

adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will

automatically rise, so as to avoid damaging to the rubber pad.

PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the

original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,

the brake mechanism limits the rotation of the machine and keeps the die cut
