Corrugated Boxes Carton Die Cutter Fully Automatic With High Speed

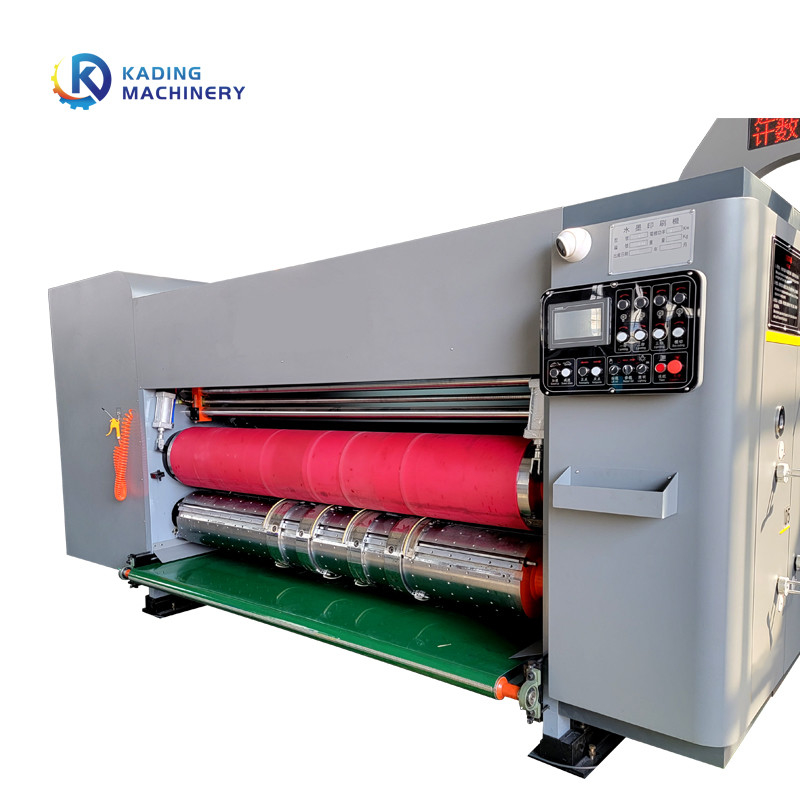

Automatic Rotary Die Cutting Machine For 1-6 Colors Corrugated Boxes

The packaging industry has experienced a technological revolution with the introduction of the fully automatic carton die cutting machine 6 colors with PLC control. This advanced machine has transformed the manufacturing process by delivering precision, efficiency, and automation in producing carton boxes with intricate designs and vibrant colors. Equipped with cutting-edge features and an intelligent PLC control system, this machine has become an indispensable tool for packaging manufacturers worldwide.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

The fully automatic carton die cutting machine 6 colors with PLC control boasts a multitude of state-of-the-art features that ensure exceptional precision and speed. Equipped with a high-speed servo motor drive system, this machine guarantees accurate positioning of carton sheets during cutting and printing operations, minimizing errors and ensuring consistent results throughout the production process.

At the core of this machine lies its PLC (Programmable Logic Controller) control system, which acts as the brain, overseeing and coordinating various operations. The PLC control system allows operators to set specific parameters, such as cutting dimensions, printing colors, and sheet feeding sequences. By automating these processes, the machine reduces human error and maximizes production efficiency.

The fully automatic die cutting machine 6 colors with PLC control offers numerous benefits to packaging manufacturers. Firstly, its automated operation significantly reduces labor costs and enhances overall production efficiency. The high-speed capabilities of the machine ensure faster turnaround times, enabling manufacturers to meet tight deadlines and fulfill customer demands promptly.

Secondly, the machine's precise cutting and printing capabilities enhance the quality and visual appeal of carton boxes. This plays a crucial role in attracting consumer attention and establishing a strong brand identity. The ability to print in multiple colors opens up endless opportunities for captivating designs and impactful branding elements.

In conclusion, the fully automatic carton die cutting machine 6 colors with PLC control represents a significant technological advancement in the packaging industry. Its cutting-edge features, including the high-speed servo motor drive, precise registration system, and automated die cutting, empower manufacturers to produce carton boxes with unparalleled precision and efficiency. The PLC control system enhances usability and reliability, ensuring seamless operation and minimizing errors. As the demand for visually appealing packaging continues to grow, this advanced machine has become an essential asset for packaging manufacturers, enabling them to stay competitive and meet the evolving needs of customers effectively.

Rotart Die Cutting Machine Details

Lead Edge Feeding Unit

1.Lead edge feeder with vacuum transfer;

2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly

and vibrate less;

3.The paper feeding table is steel material. The wall is strong and durable;

4.Automatically count the production quantities. touch screen display;

5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;

transport, customers can choose to continue or skip delivery

6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control

switch, as to realize the emergency stop, stop or restore the paper feeding.

REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.

SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.

FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is

wear-resistant and smooth.

ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.

DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the

clarity of the printing, and reduce paper waste.

Printing Unit

VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure

accurate to avoid the paste version problems.

INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing

plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.

PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.

PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.

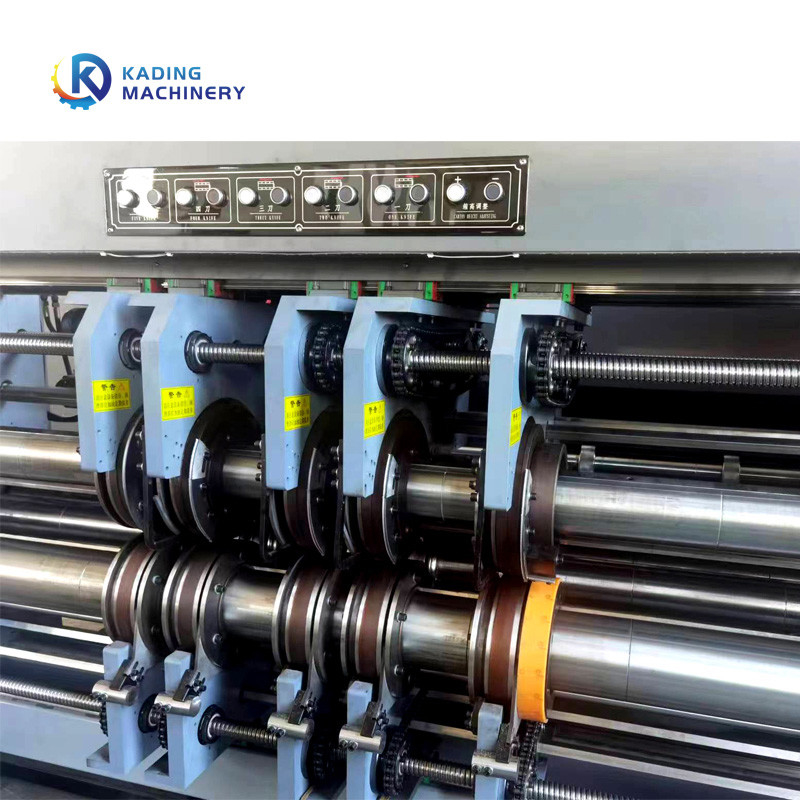

Slotting Unit

CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,

which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.

Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.

OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.

SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment

and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.

CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.

Die Cutting Unit

OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.

PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial

direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

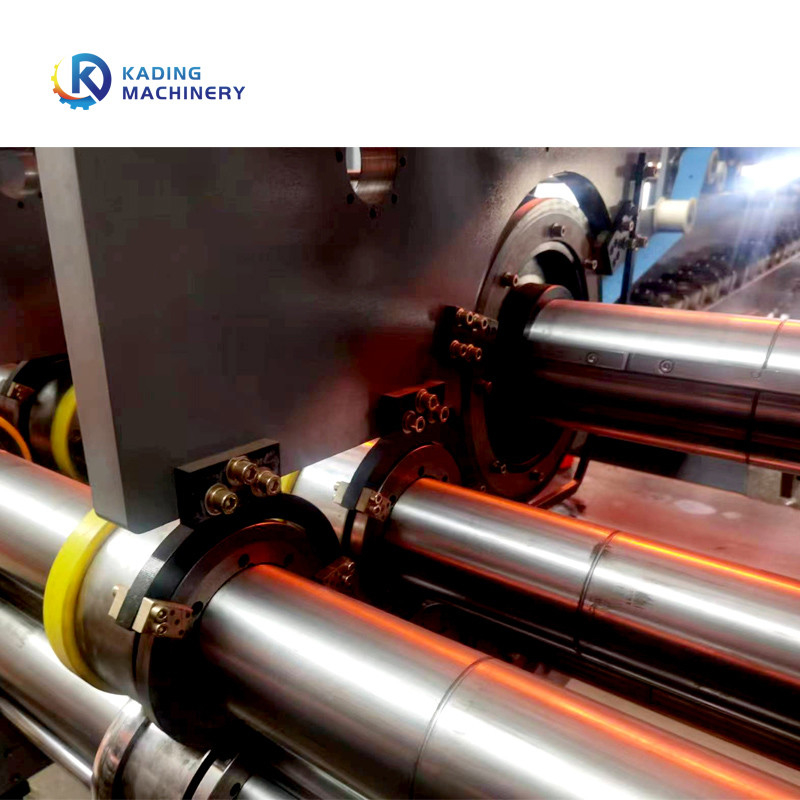

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried

out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation

range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and

negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the

adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will

automatically rise, so as to avoid damaging to the rubber pad.

PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the

original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,

the brake mechanism limits the rotation of the machine and keeps the die cut
