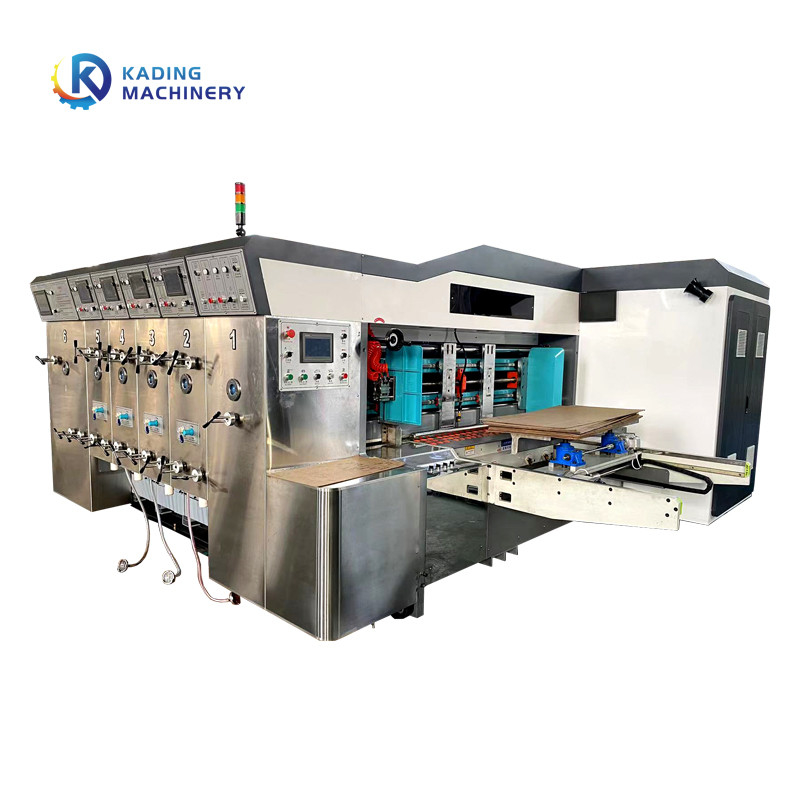

120 To 200PCS/Min Multi Color Cardboard Printer Machine With Double Suction Pump

Multi Color Carton Printing Machine With 120 To 200PCS / Min And Double Suction Pump

In today's global marketplace, efficient and high-quality carton production is crucial for businesses to stand out. To meet the demands of the international market, the fully automatic carton printing machine has become an indispensable tool. This SEO article highlights the necessity of these machines in carton production, focusing on their functions, advantages, theoretical foundations, and service capabilities tailored to the needs of the international market.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Necessity in Carton Production

    The fully automatic carton printing machine plays a vital role in carton production due to its efficiency, speed, and consistent results. With the increasing demand for customized and visually appealing packaging, businesses require a printing solution that can quickly and accurately reproduce intricate designs, logos, and product information on carton surfaces. These machines streamline the printing process, ensuring high-volume production without compromising quality. In the competitive international market, having a printing machine is essential for businesses to meet deadlines, attract customers, and establish their brand identity.

Function
    The primary function of this machine is to print detailed and vibrant designs on carton surfaces. These machines excel in printing high-resolution graphics, text, barcodes, and variable data. They offer versatility in terms of printing single-color or multi-color designs, allowing businesses to create eye-catching packaging. Additionally, these machines employ advanced drying and curing mechanisms to ensure quick and durable prints. With precise registration control, they maintain alignment even on complex carton structures, resulting in visually appealing and professional-looking packaging.

Advantages of Carton Printing Machine
    The advantages of using these machines are numerous. These machines eliminate the need for manual labor, reducing production costs and minimizing human errors. Their high-speed printing capabilities enable businesses to meet tight deadlines while maintaining excellent print quality. The ability to print vibrant designs enhances brand recognition and product appeal, giving businesses a competitive edge in the international market. Furthermore, the versatility of these machines allows for printing on various carton sizes and substrates, accommodating diverse packaging requirements.

Theory
    These machines are based on the theory of precise ink or toner deposition onto carton surfaces. Leveraging advanced digital printing technology, these machines utilize inkjet or laser systems to achieve accurate and consistent color reproduction. With software control, they seamlessly integrate with digital design files, ensuring optimal print results. By adhering to the principles of high-resolution printing and precise registration control, these machines deliver impeccable prints that enhance the visual impact of carton packaging.

Service
    Manufacturers of these printing machines understand the importance of providing comprehensive service to their international customers. These service packages typically include installation, training, maintenance, and technical support. Skilled technicians are available to promptly address any issues and minimize downtime. Additionally, manufacturers offer software updates and enhancements to keep the machines up-to-date with the latest advancements. Reliable service ensures uninterrupted production and maximizes the return on investment for businesses operating in the global market.

Description of Carton Printing Machine

Lead Edge Feeding Unit

1.Lead edge feeder with vacuum transfer;

2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly

and vibrate less;

3.The paper feeding table is steel material. The wall is strong and durable;

4.Automatically count the production quantities. touch screen display;

5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;

transport, customers can choose to continue or skip delivery

6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control

switch, as to realize the emergency stop, stop or restore the paper feeding.

REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.

SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.

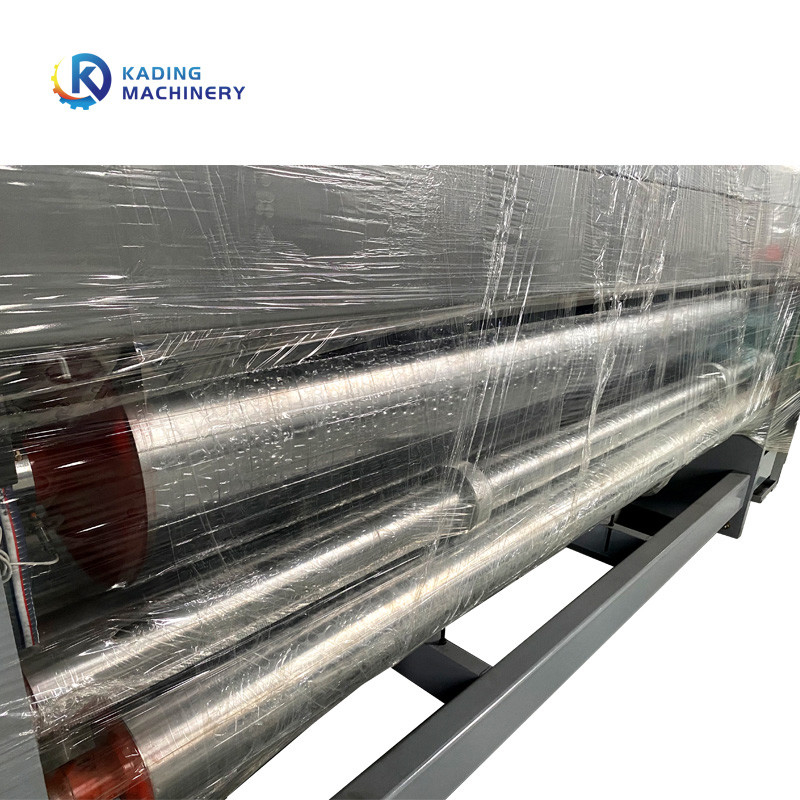

FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is

wear-resistant and smooth.

ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.

DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the

clarity of the printing, and reduce paper waste.

Printing Unit

VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure

accurate to avoid the paste version problems.

INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing

plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.

PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.

PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.

Slotting Unit

CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,

which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.

Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.

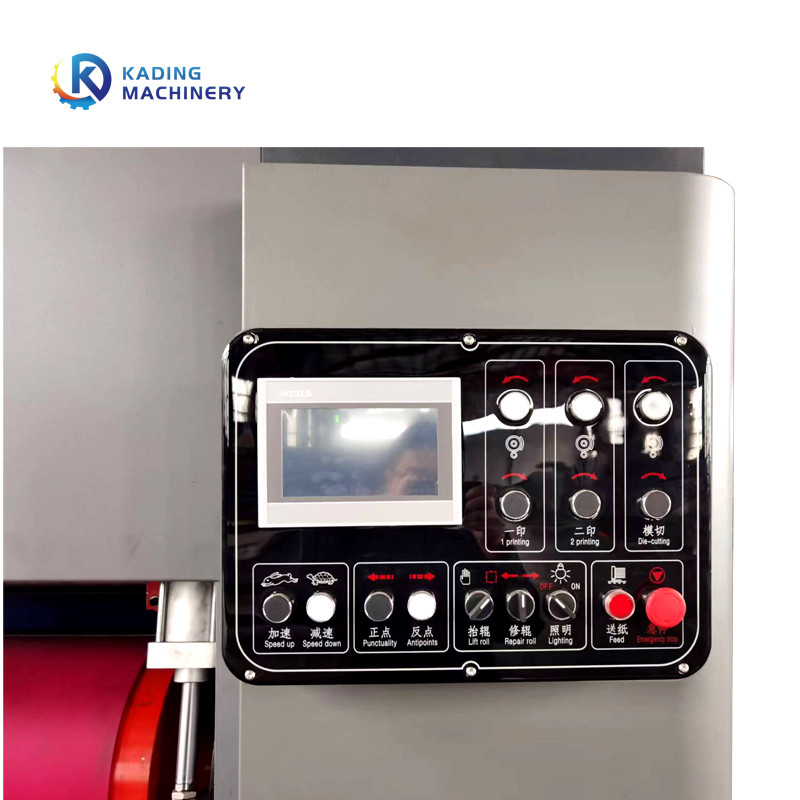

OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.

SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment

and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.

CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.

Die Cutting Unit

OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.

PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial

direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried

out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation

range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and

negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the

adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will

automatically rise, so as to avoid damaging to the rubber pad.

PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the

original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,

the brake mechanism limits the rotation of the machine and keeps the die cut
